Woody Equipments is proud to present our new 9-58 HV. Our new design lower the gravity center for more wood. Compatibility with 95HD and 105HD log loader.
FORESTRY TRAILER | |
Compatible with log loaders | |

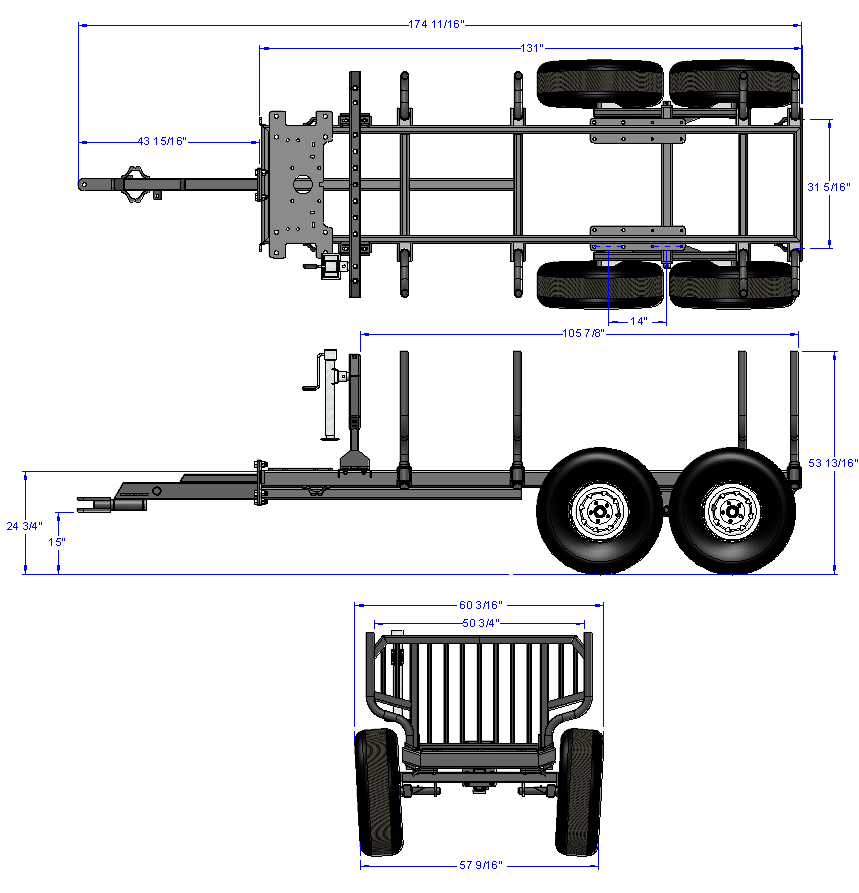

DIMENSIONS | |
Load length | 105'' (8' 9'') |
Overall length | 174'' (14' 6'') |
Overall Width | 58'' |
Gross trailer weight | 1642 lbs |
CAPACITY | |
Axle capacity | 3500 lbs / Chacun |
Trailer tonnage | 2 Tonnes / 4000 lbs |
Volume | 75,8 Cubic Feets |
0,3 Wood Cords of (4'x8'x8') | |
CHARACTERISTICS | |
Adjustable 24'' hydraulic axle | Manually |
Protective Grid | Inclusive |
Number of posts | 8 |
Tires | 8 ply, 11L15 |

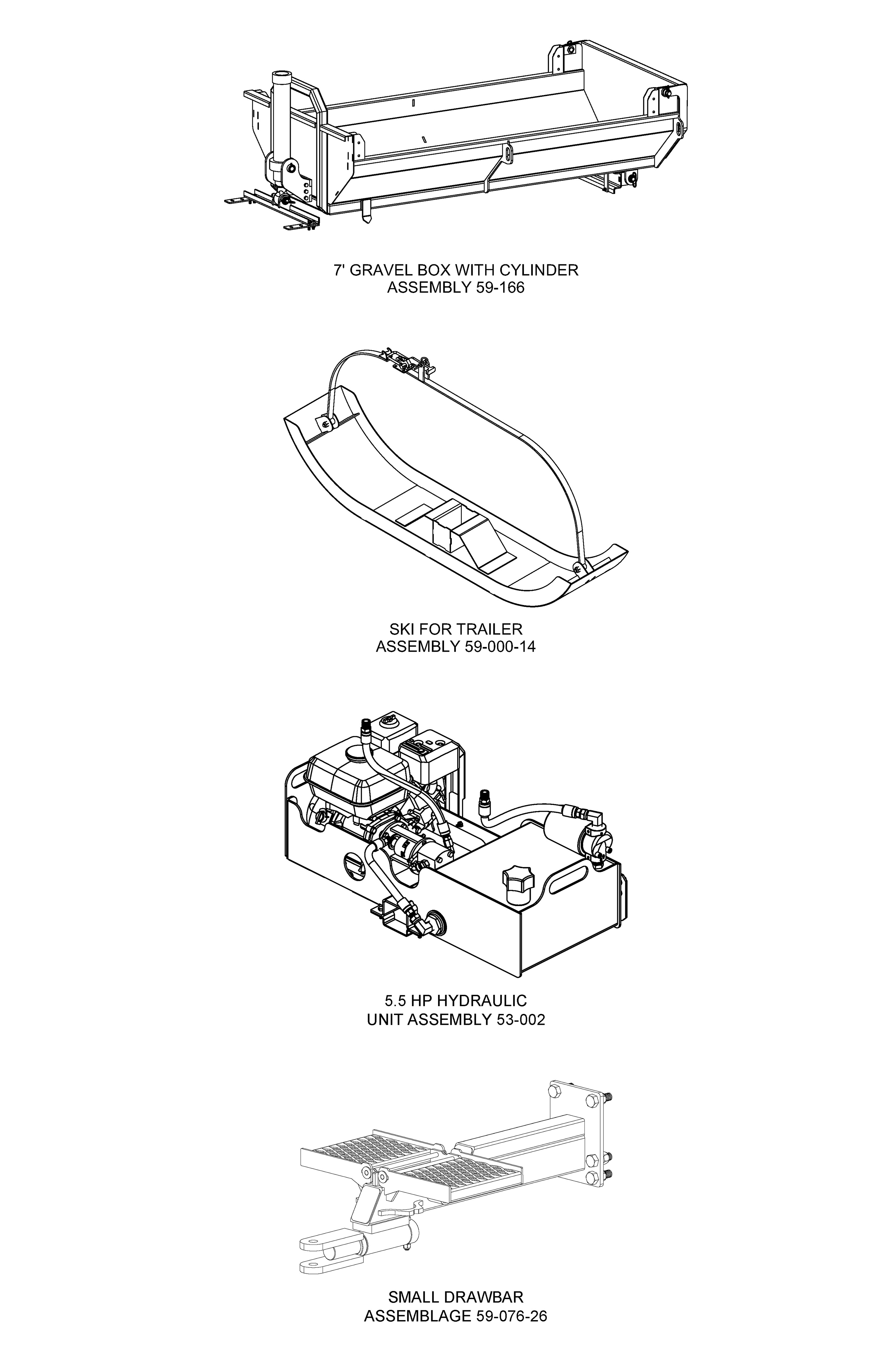

OPTION | #SKU |
SKI | 59-000-14 |
Gravel bin 7' | 59-166 |
Power unit 5.5HP | 53-002 |
Single bolted drawbar with stool | 59-076-26 |
