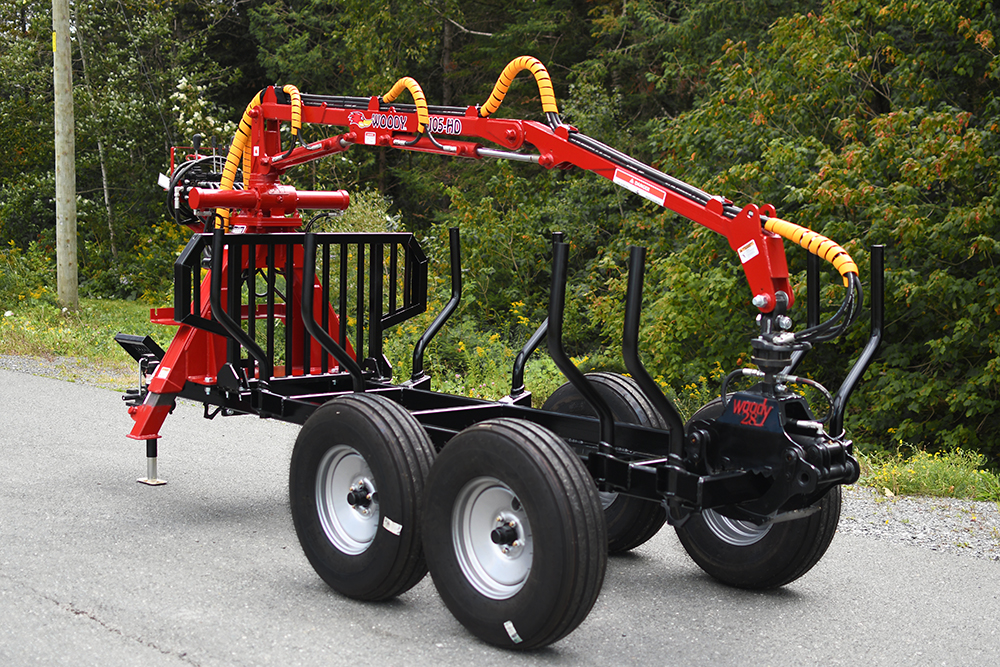

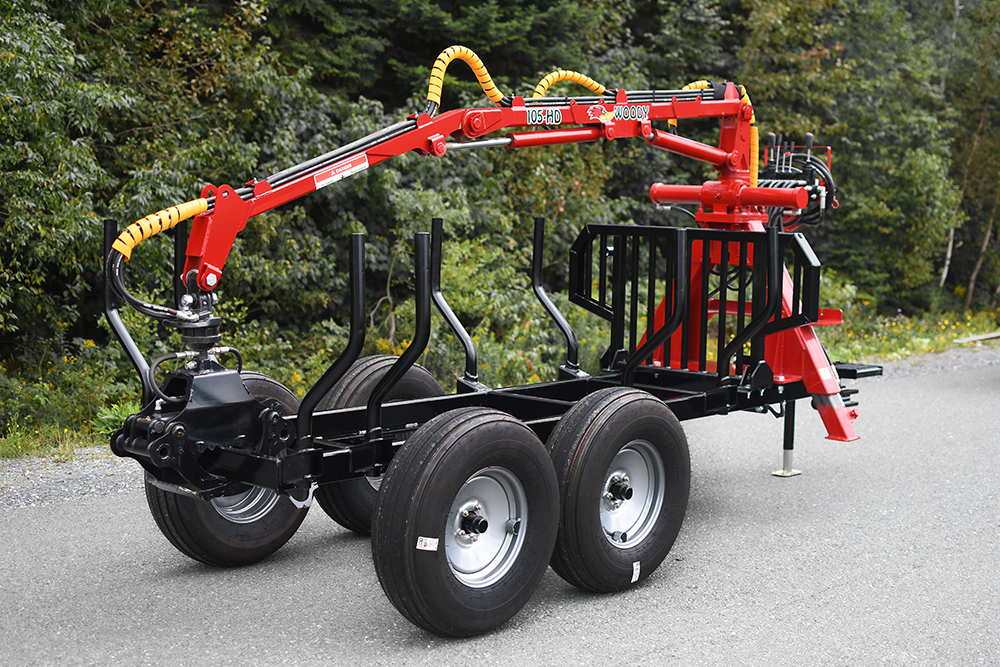

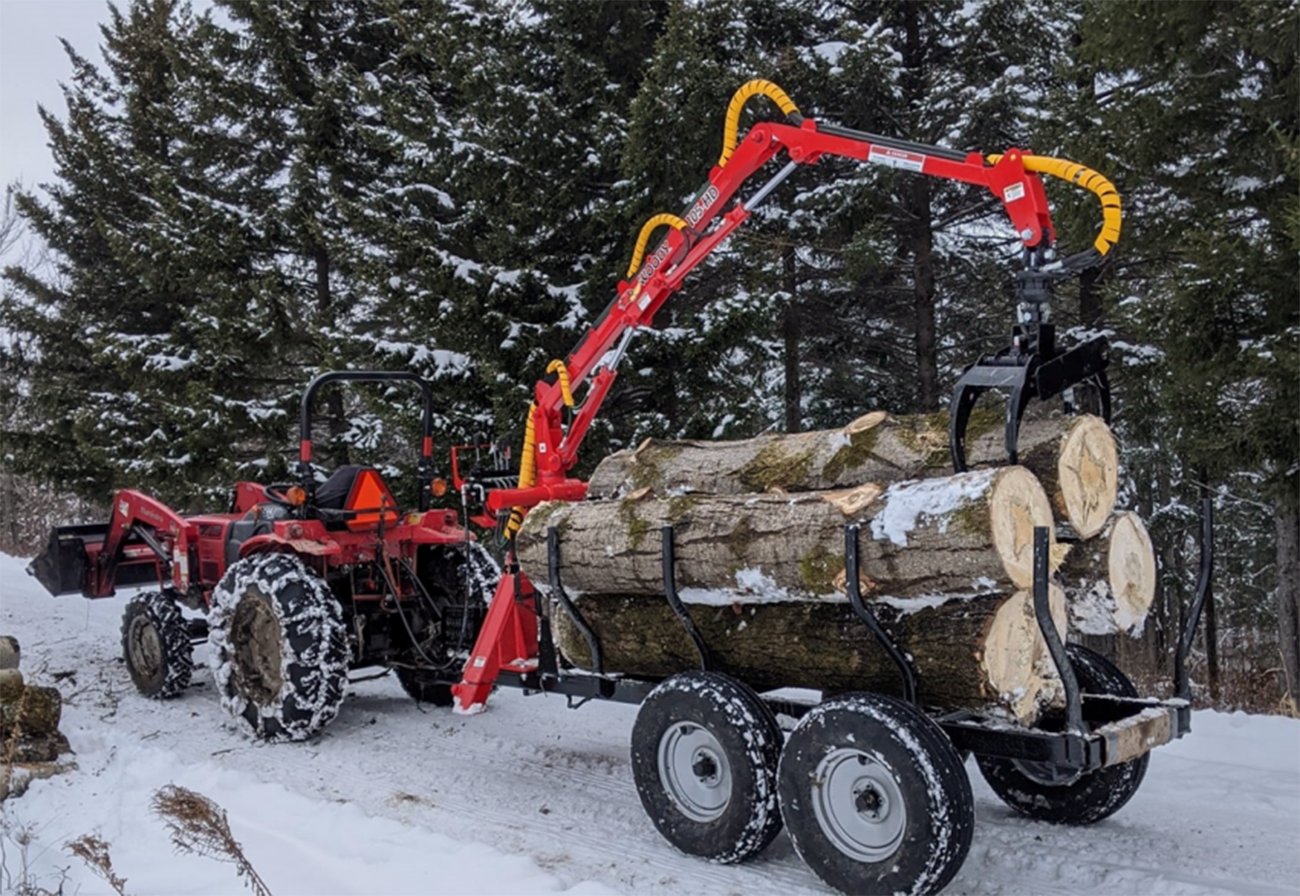

The 105-HD Woody Log Loader is a versatile loader that is both lightweight and powerful. With its low profile height and a boom reach 10' 6", this loader will help you perform multiple jobs both in the sugar bush and forest. Designed specifically for 20 - 40 HP tractor.
LOG LOADER | |
RELATED TRAILER | |

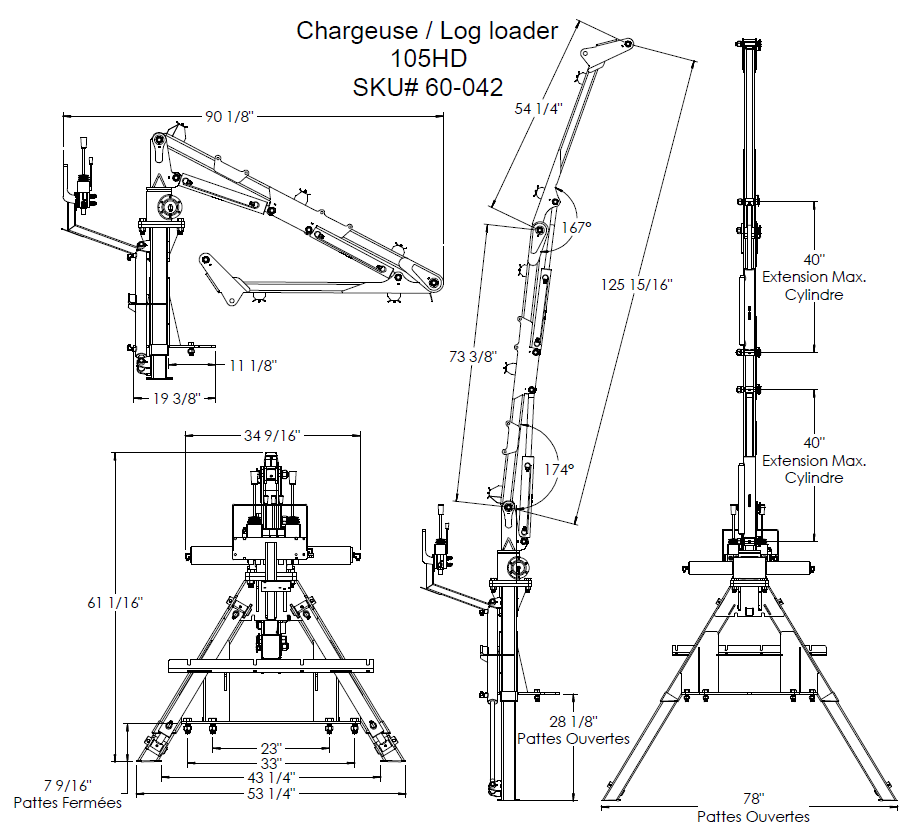

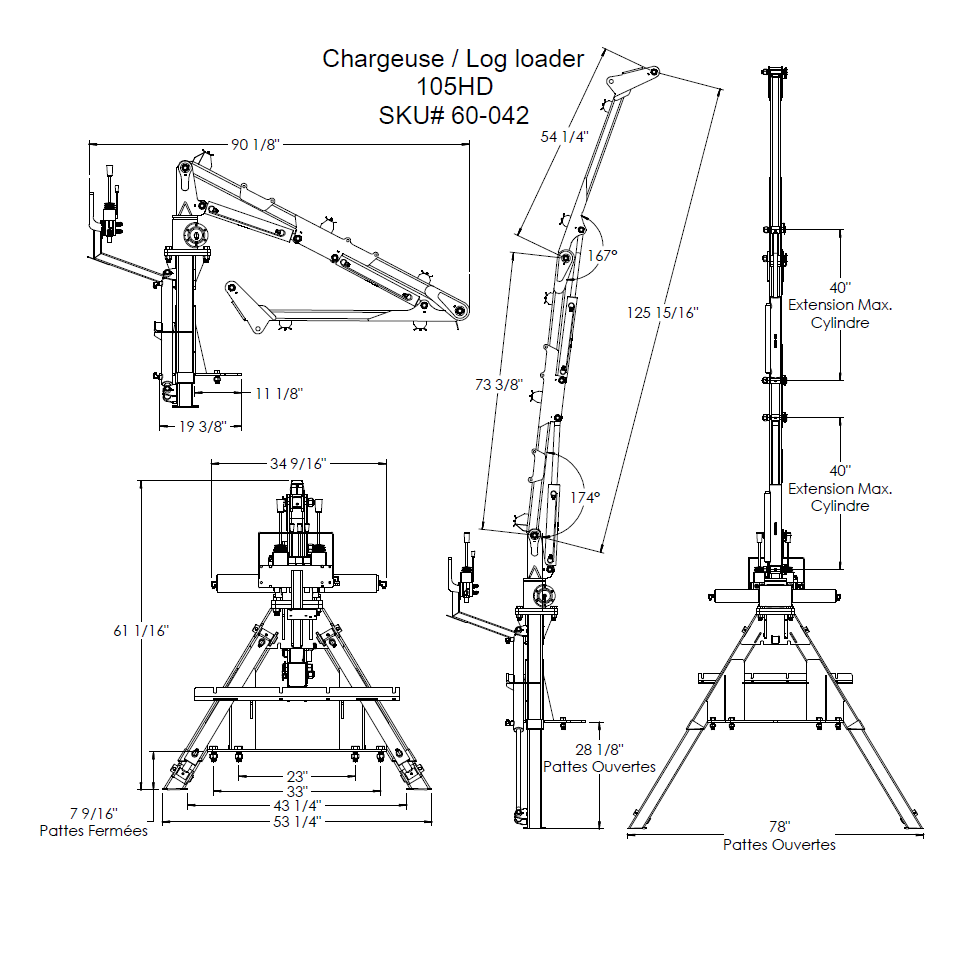

REACH | 10' 6'' |
LIFT CAPACITY | |
Maximum Range | 650 lbs |
Mid Range | 1300 lbs |
WEIGHT (WITHOUT TRAILER) | 850 lbs |
INFORMATIONS | |

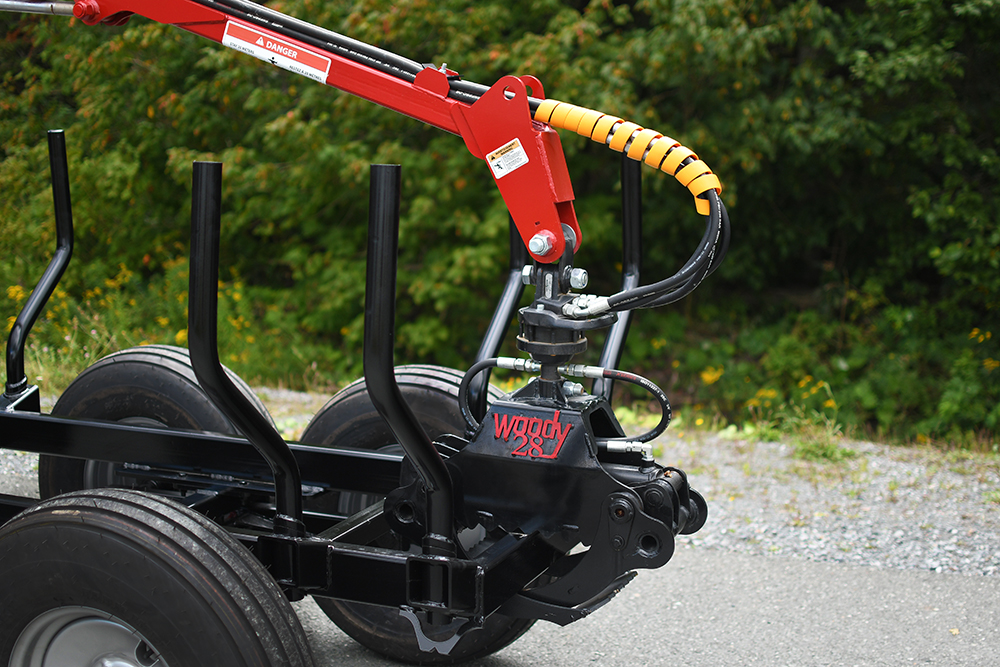

Grapple | 28'' with 360° rotation (57-022) |
Maximal rotor capacity | 1000 KG |

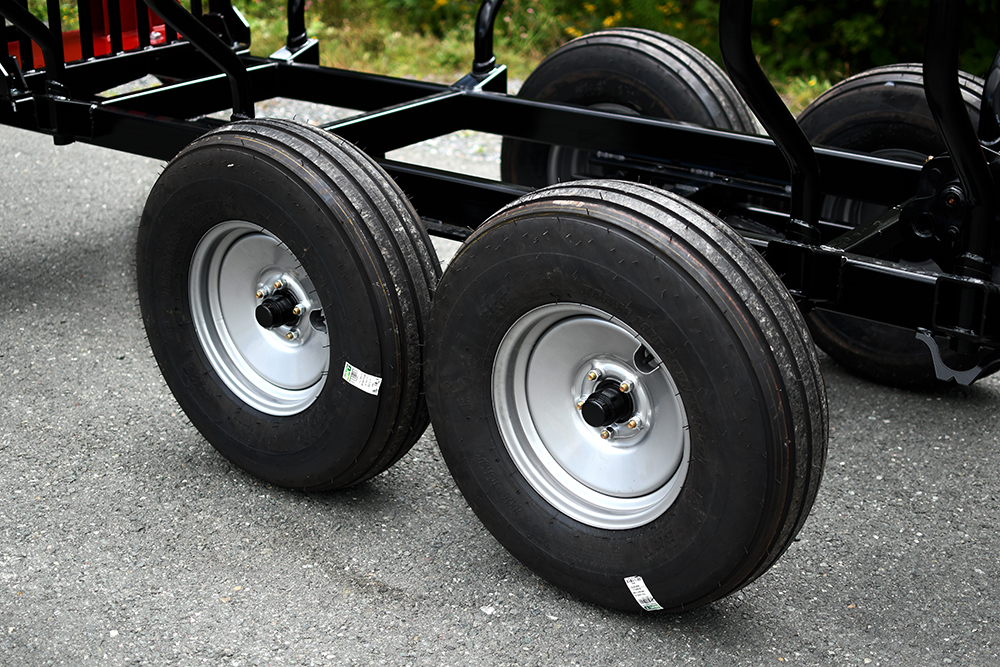

Standard Tire | 11L15 8 ply Axle 3500 lbs |
Rack and Pignion | Standard |
OPTIONS | |

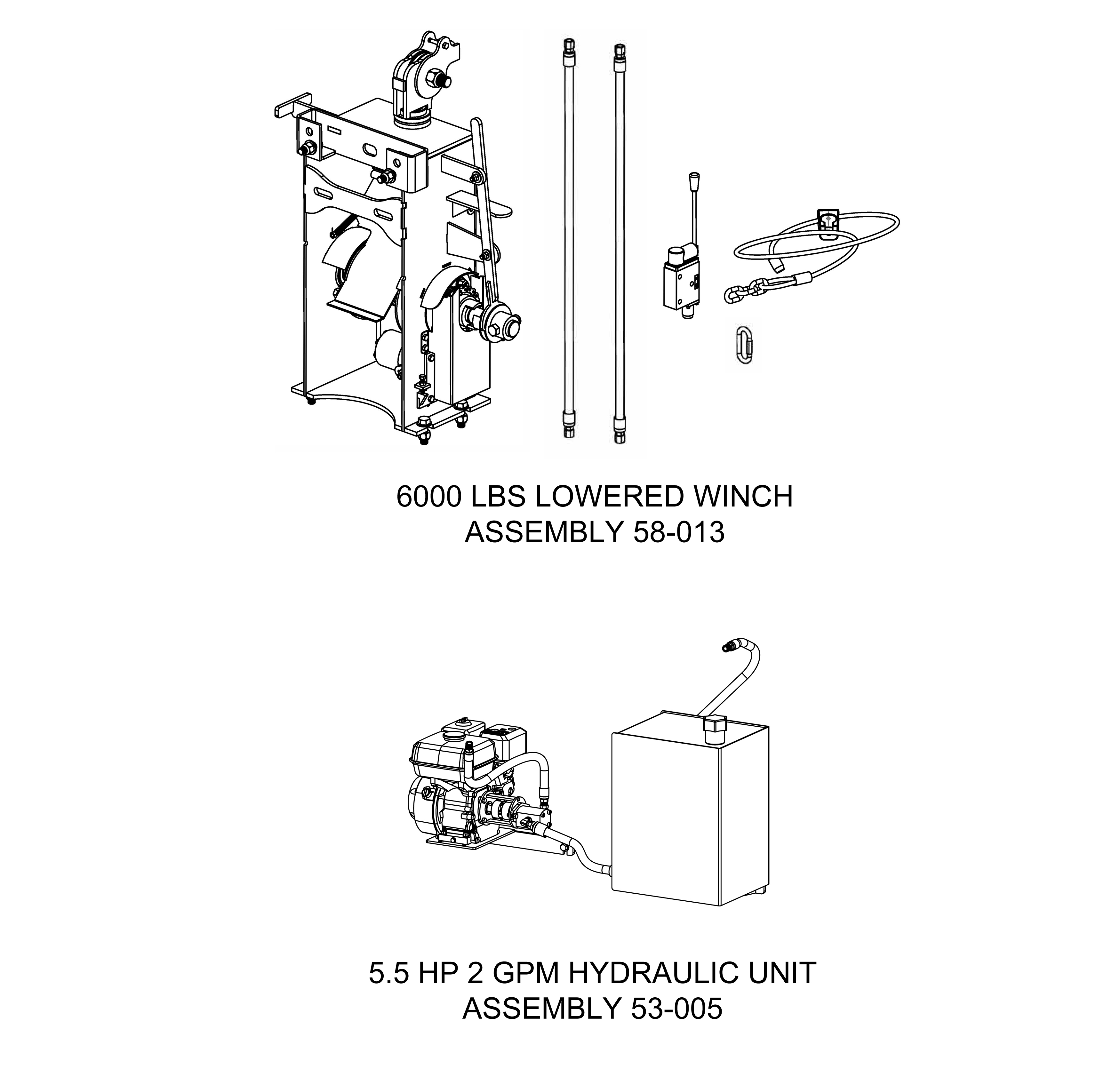

Winch 4000 lb or 6000 lbs (Lower) | 4000 lbs (58-008) / 6000 lbs (58-013) |
5.5HP Power unit | 53-005 |
Bucket 14'' & 18" | 14'' (56-002) / 18'' (56-003) |
8' Gravel bin | 59-167 |
