This Forestry Trailer is designed to fit with the Woody 90-HD Log Loader with 25-10-12 tires
Designed specifically for ATV's.
FORESTRY TRAILER | |
Compatible with log loaders | |

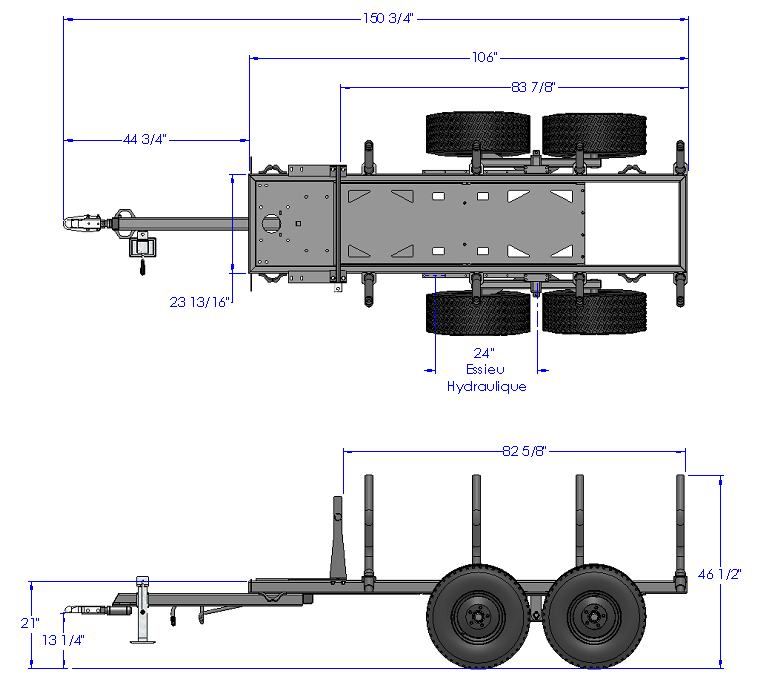

DIMENSIONS | |
Load length | 8' |
Overall length | 12' 6'' |
Overall Width | 52'' |
Gross trailer weight | 730 lbs |
CAPACITY | |
Axle capacity | 3500 lbs / Chacun |
Trailer tonnage | 2 Tonnes / 4000 lbs |
Volume | 59,3 Cubic feet |
0,23 Cords of wood (4'x8'x8') | |
CARACTERISTICS | |
Adjustable 24'' hydraulic axle | inclusive |
Protective Grid | inclusive |
Fixed draw bar for 2'' ball | inclusive |
Number of posts | 8 |
Tires | 25-10-12 6 plis |

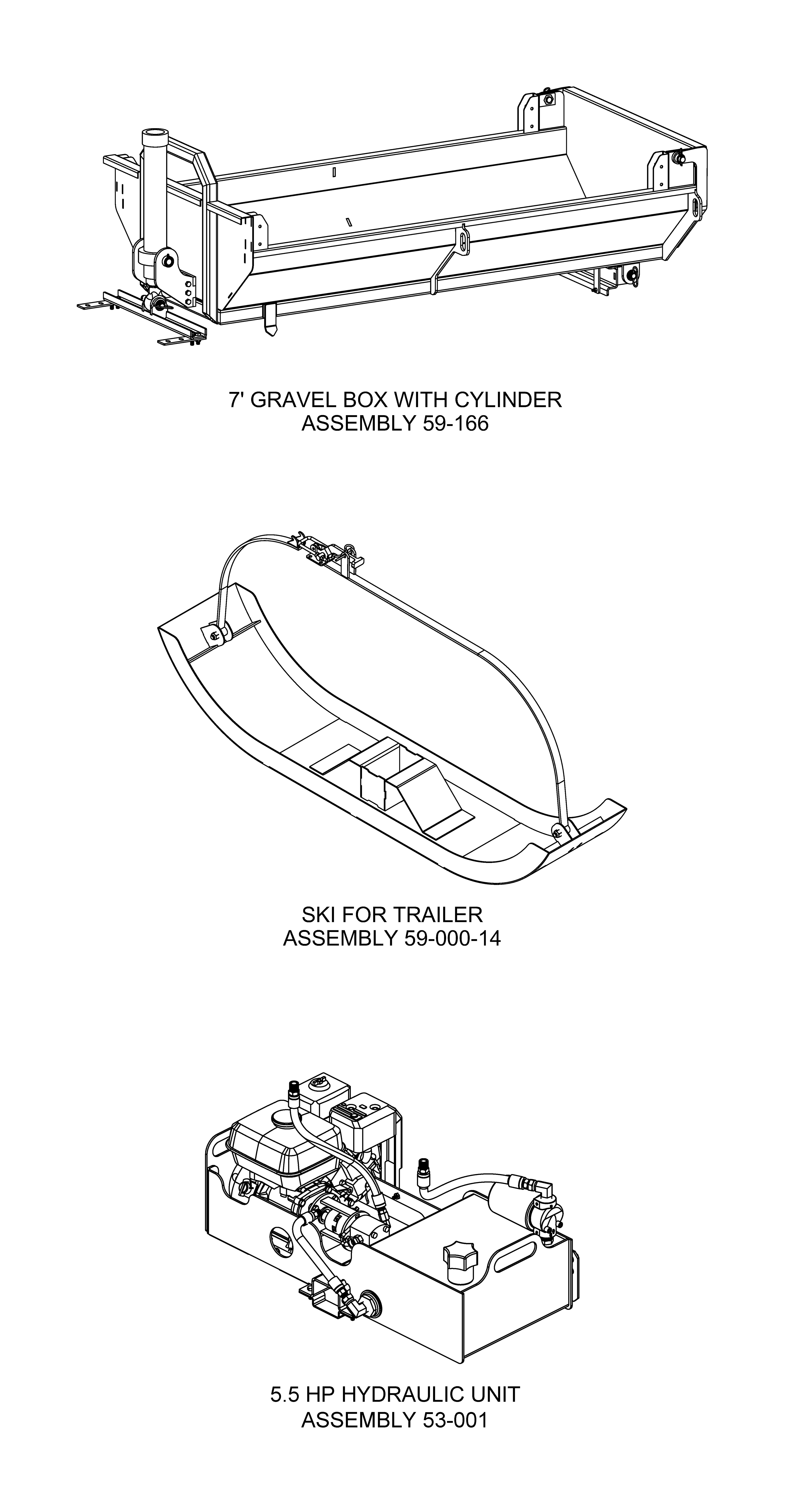

OPTION | #SKU |
SKI | 59-000-14 |
Gravel bin 7' with hydraulic cylinder | 59-166 |
Power unit 5.5HP | 53-001 |

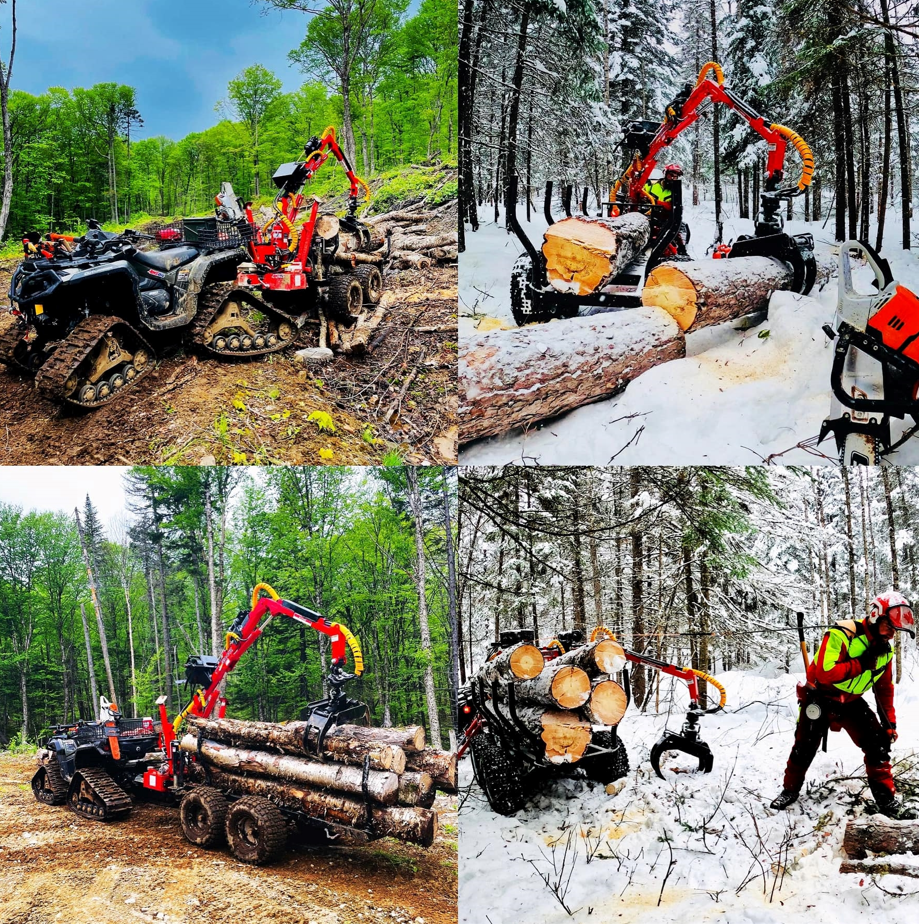

Credit to Bûcheron Service for this image
