The 90-HD is designed for ATVs of 400 cc and more, and for small tractors. Its 63” low profile is ideal for work in the sugar bush; you are able to go under your tubes in several locations without dismantling. It has a 9’ range and has a 600 lb lifting capacity at maximum range. The 90-HD has its own hydraulic unit, therefore, you do not need an auxiliary oil output.
It is mounted on a 8-52 trailer, (8’ load x 52” wide). It includes an adjustable hydraulic axle that allows you to balance your load at all times, which makes this an essential tool for an ATV.
LOG LOADER | |
|---|---|
Related trailer | |
Reach | 9' |
LIFT CAPACITY | |
Maximun range | 600 lbs |
Mid range | 1200 lbs |
Weight (Without trailer)) | 650 lbs |
INFORMATIONS | |
Grapple | 28'' with 360° rotation (57-022) |
Maximun rotor capacity | 1000 Kg |
OPTIONS | # SKU |

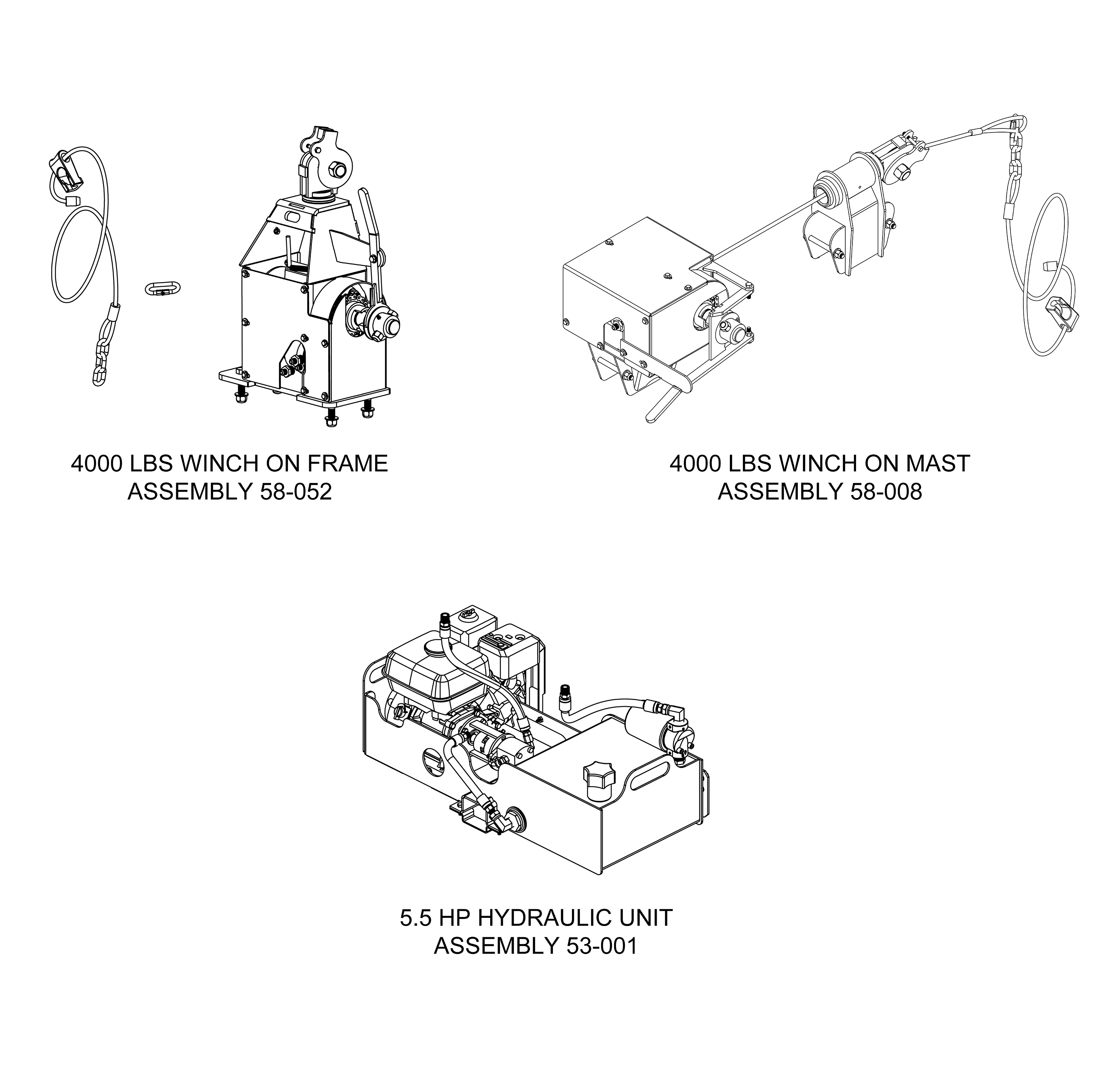

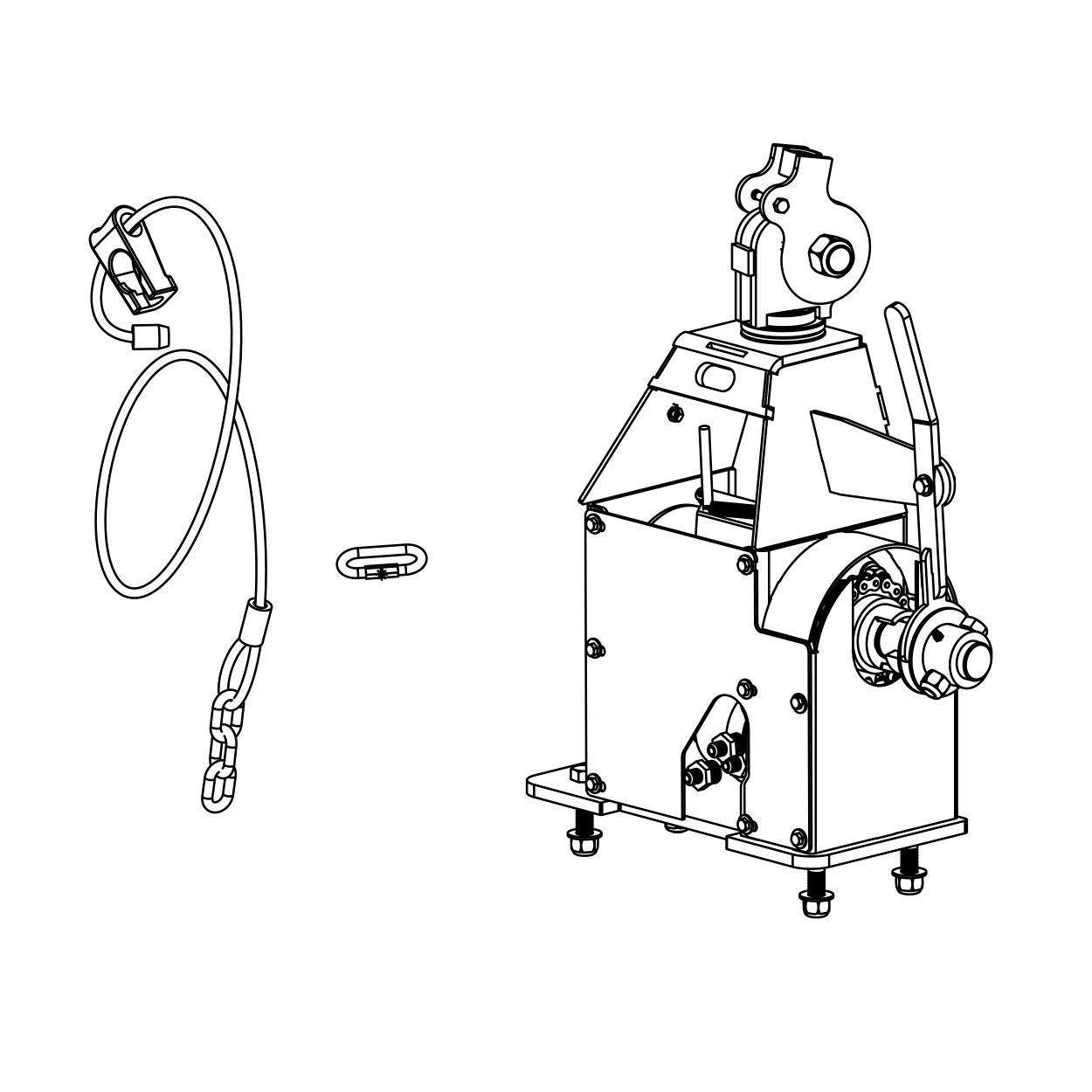

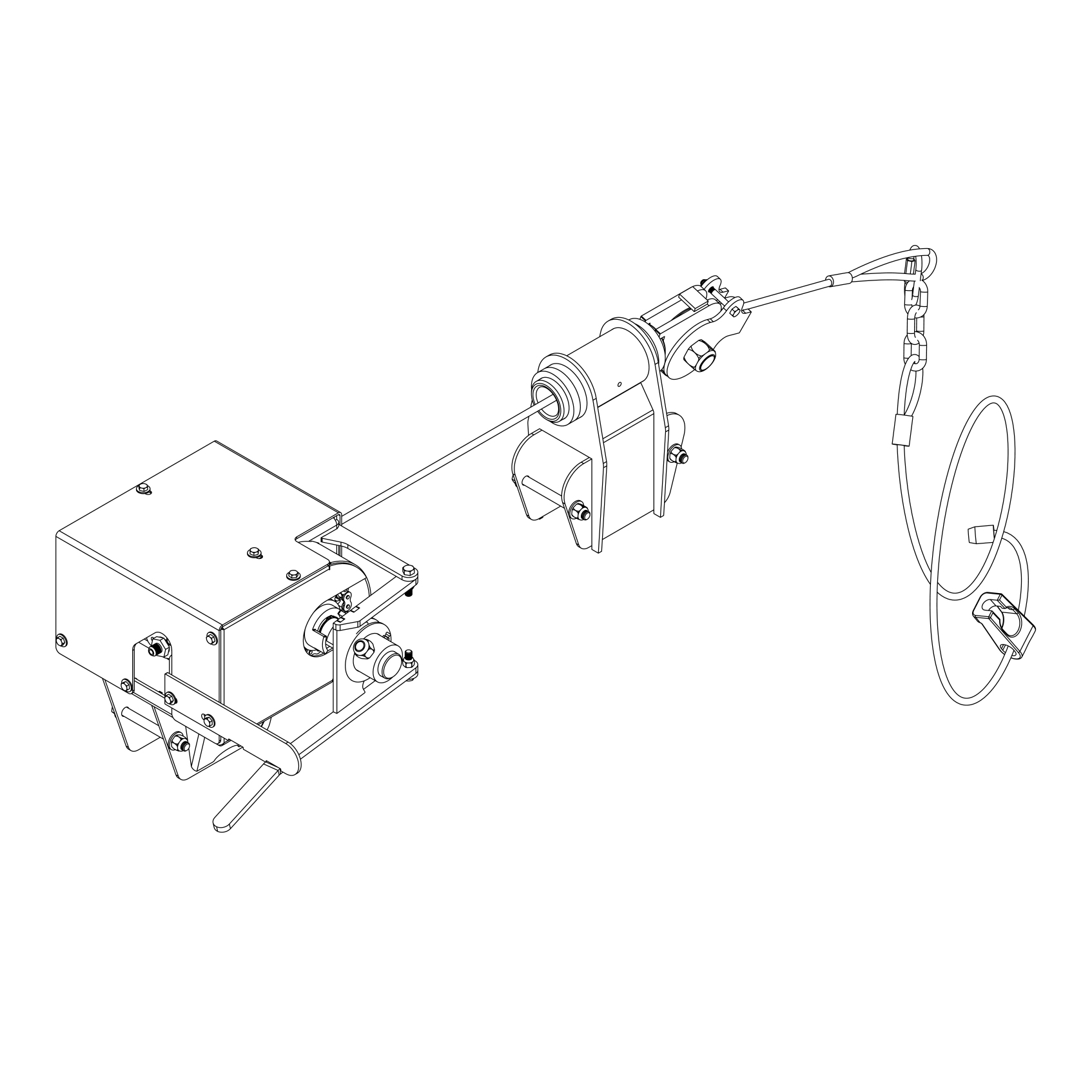

4000 lbs Winch | On Boom (58-008) / On Trailer (58-052) |

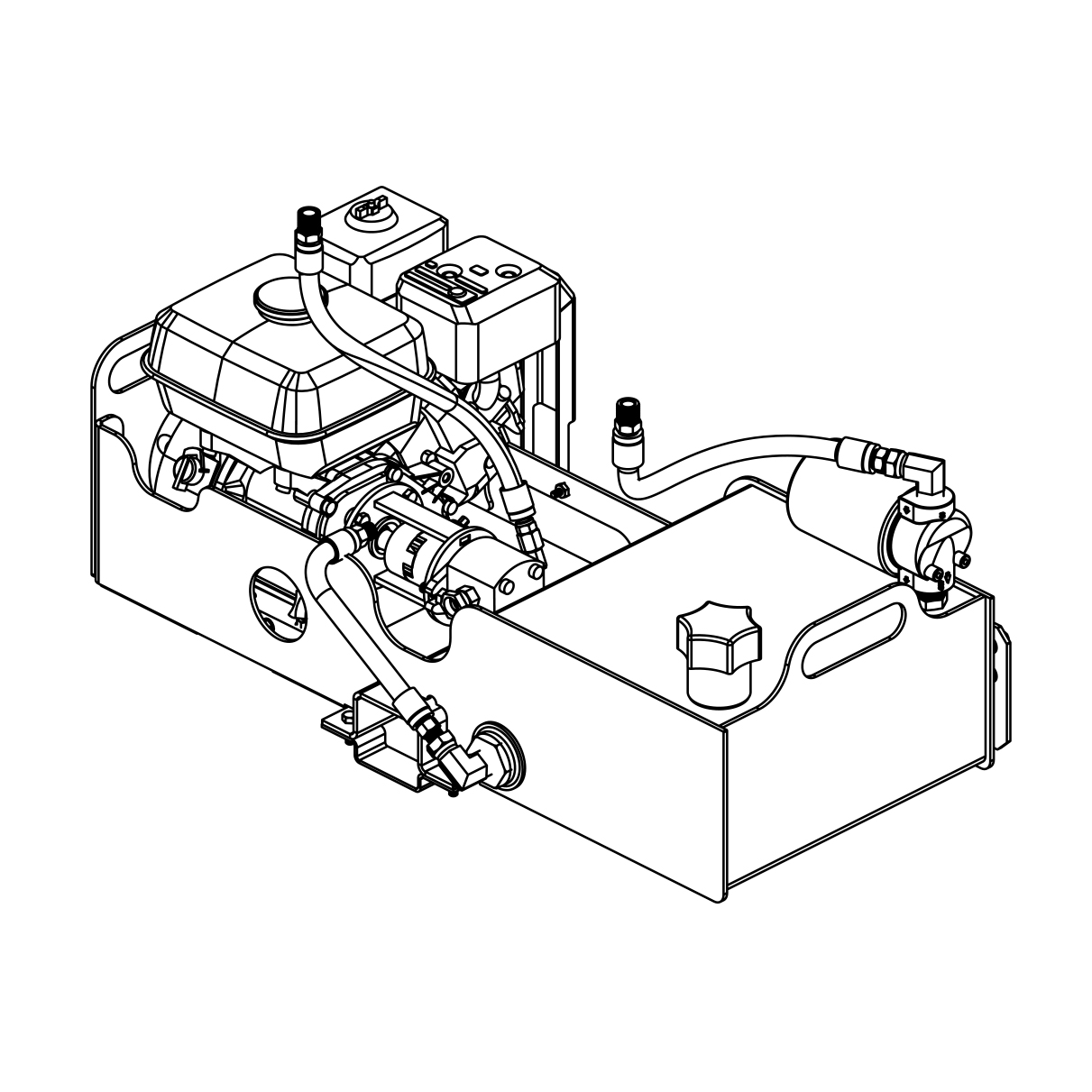

5.5 HP Power unit | On Boom (58-008) / On Trailer (58-052) |
12" Bucket | 56-005 |
7' Gravel bin | 59-166 |
Skis | 59-000-14 |
