FORESTRY TRAILER | |
Compatible with the log loaders | |

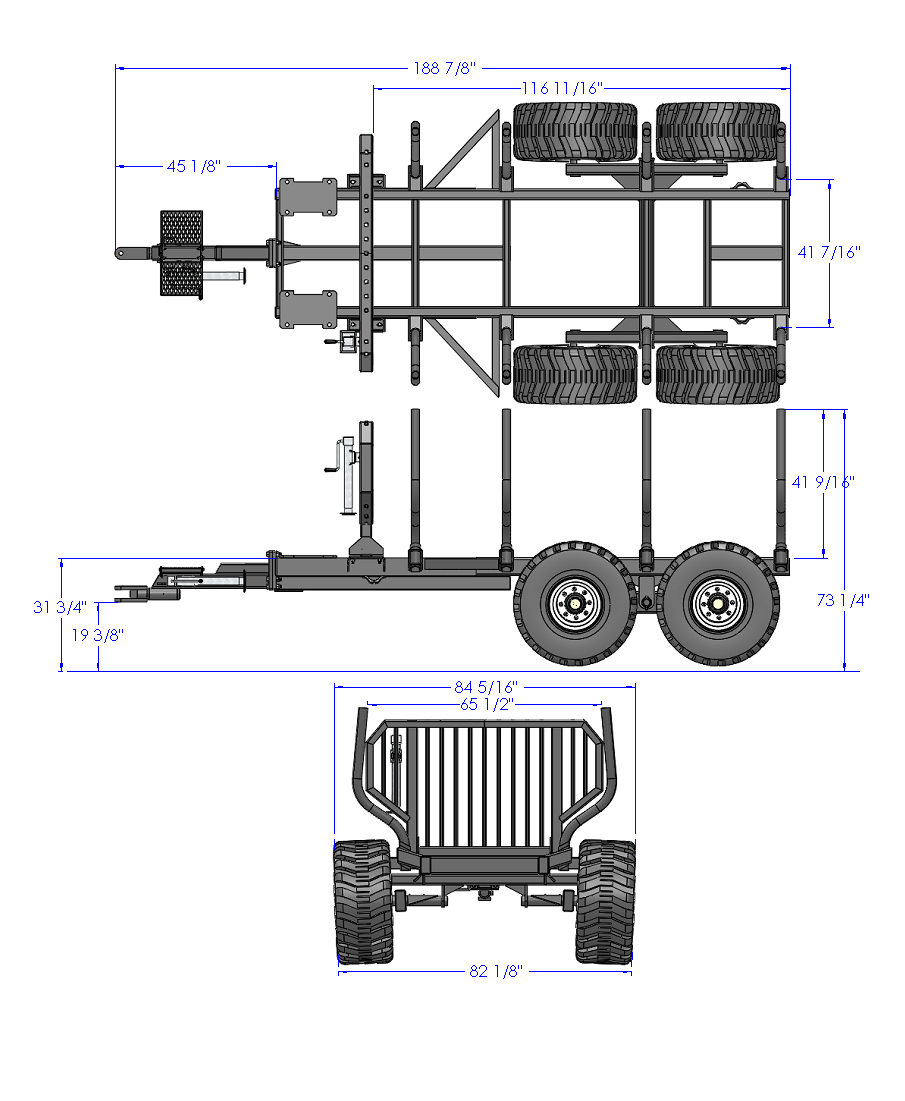

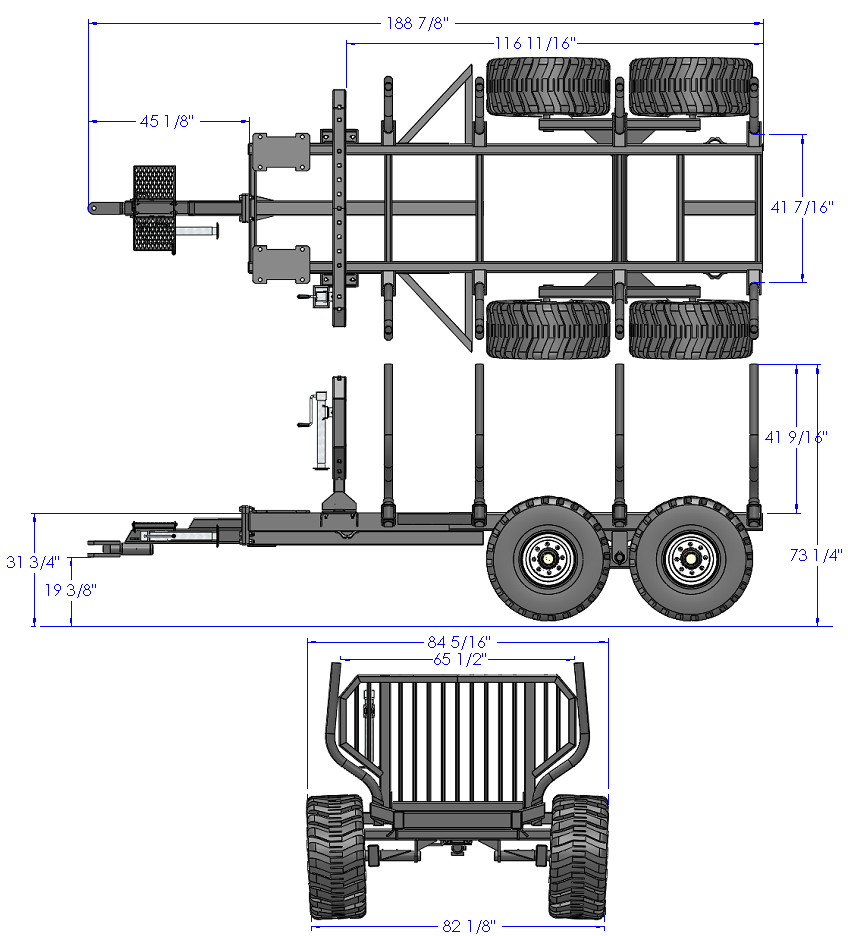

DIMENSIONS | |
Load length | 115'' (9' 6'') |
Overall length | 196'' (16' 5'') |
Overall width | 84'' |
Gross trailer weight | 2572 lbs |
CAPACITY | |
Axle capacity | 8000 lbs / each |
Trailer tonnage | 8 Tons / 16000 lbs |
Volume | 172 Cubic Feet |
Surface | 17,65 Square Feet |
Surface Wood Cords (8' Large X 4' High) | 0,55 Wood Cords |
CHARACTERISTICS | |
Protective Grid | Inclusive |
Number of posts | 8 |
Tires | 400-60-15.5, 18 ply |

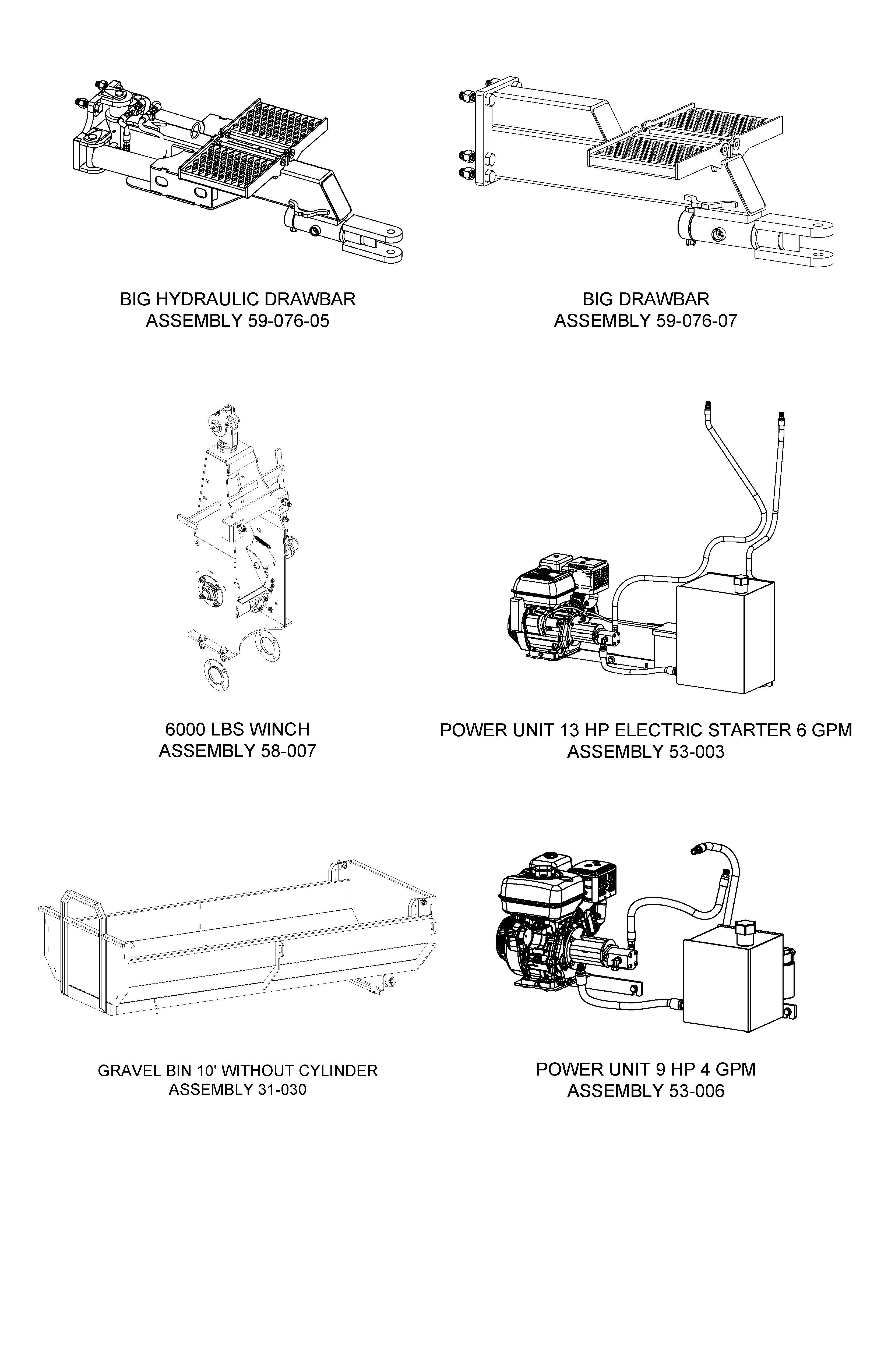

OPTION | #SKU |
Gravel bin 7' with hydraulic cylinder | 31-030 |
Tires | 12.5 L15 |
Articulation Hydraulique double | 59-076-05 |
Big Drawbar | 59-076-07 |
