Constructed of sturdy and durable material, the 170-HD Woody Log Loader model is designed for tractors from 90 HP and more, skidders and trucks. It has a reach of 17'.
LOG LOADER | |
RELATED TRAILER | |

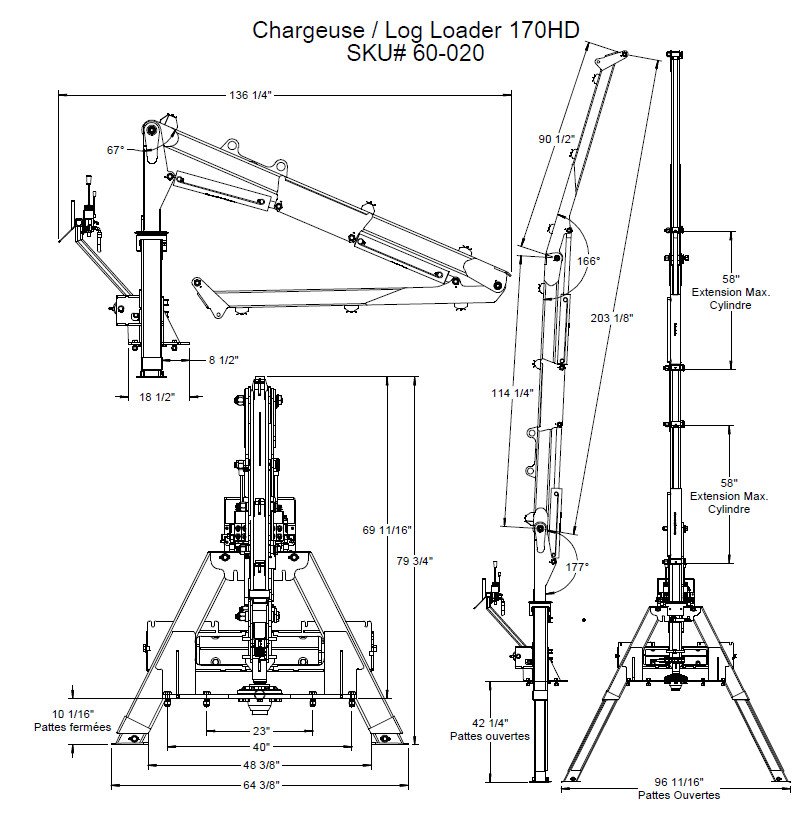

REACH | 17' |
LIFT CAPACITY | |
Maximum Range | 1400 lbs |
Mid Range | 2900 lbs |
WEIGHT (WITHOUT TRAILER) | 2250 lbs |
INFORMATIONS | |
Grapple | 42'' with 360° rotation (57-017) |
52'' with 360° rotation (57-021) | |
Maximal rotor capacity | 3000 KG |
OPTIONS | #SKU |

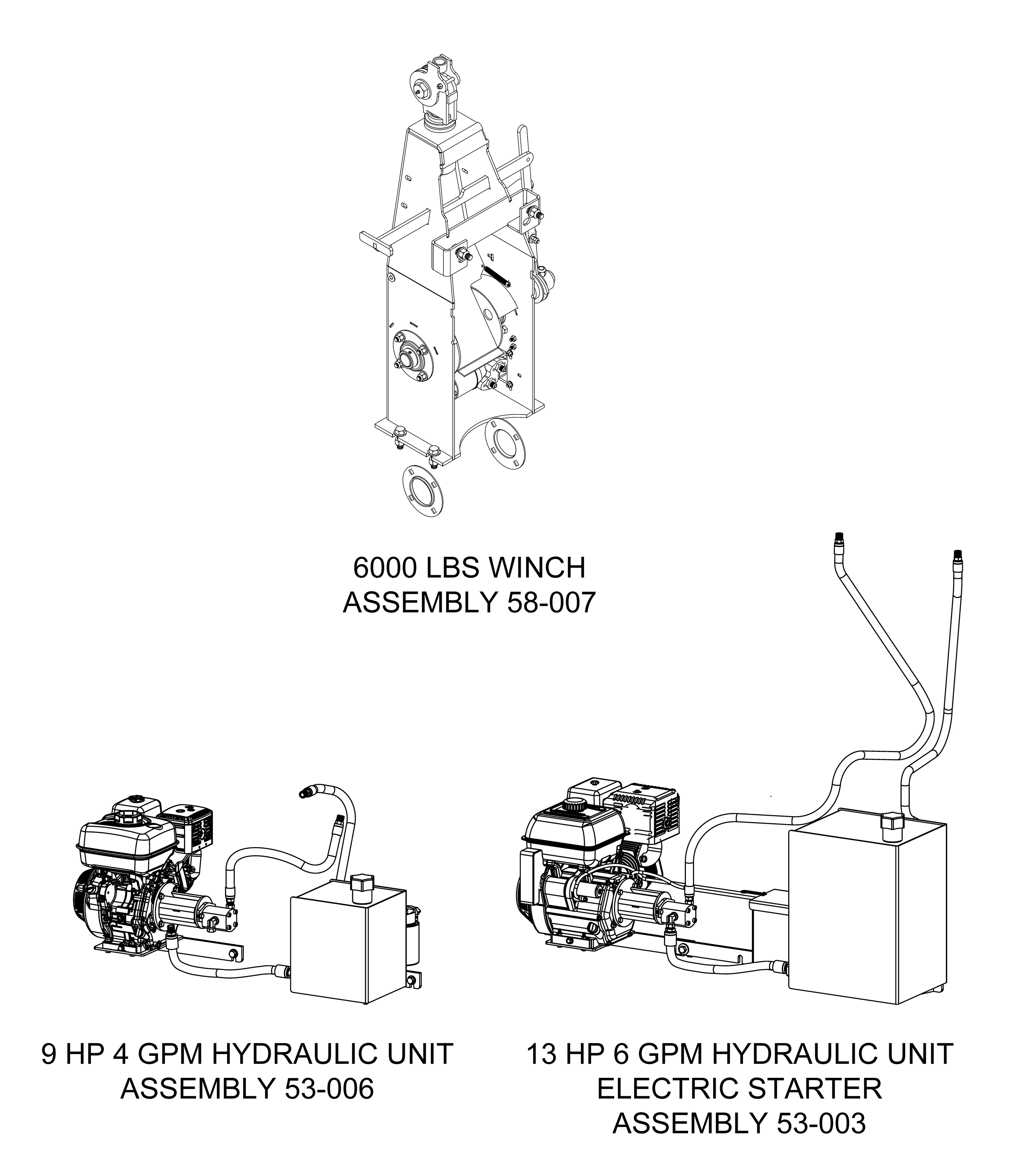

6000 lbs Winch | 58-007 |
9HP or 13HP Power unit | 9HP (53-006) / 13HP (53-003) |
Rack and Pignion | 110070 |
Bucket 14'' & 18" | 14'' (56-002) / 18'' (56-003) |
10' Gravel bin | 31-060 |
