The 90-HD is designed for ATVs of 400 cc and more, and for small tractors. Its 63” low profile is ideal for work in the sugar bush; you are able to go under your tubes in several locations without dismantling. It has a 9’ range and has a 600 lb lifting capacity at maximum range. The 90-HD has its own hydraulic unit, therefore, you do not need an auxiliary oil output.
It is mounted on a 8-52 trailer, (8’ load x 52” wide). It includes an adjustable hydraulic axle that allows you to balance your load at all times, which makes this an essential tool for an ATV.
LOG LOADER | |
|---|---|
Related trailer | Comptible with the trailer 8-52 (SKU# 59-187)
|
Reach | 9' |
LIFT CAPACITY | |
Maximun range | 600 lbs |
Mid range | 1200 lbs |
Weight (Without trailer)) | 650 lbs |
INFORMATIONS | |
Grapple | 28'' with 360° rotation (57-022)
|
Rotor |
|
Maximun rotor capacity | 1000 Kg |
OPTIONS | # SKU |

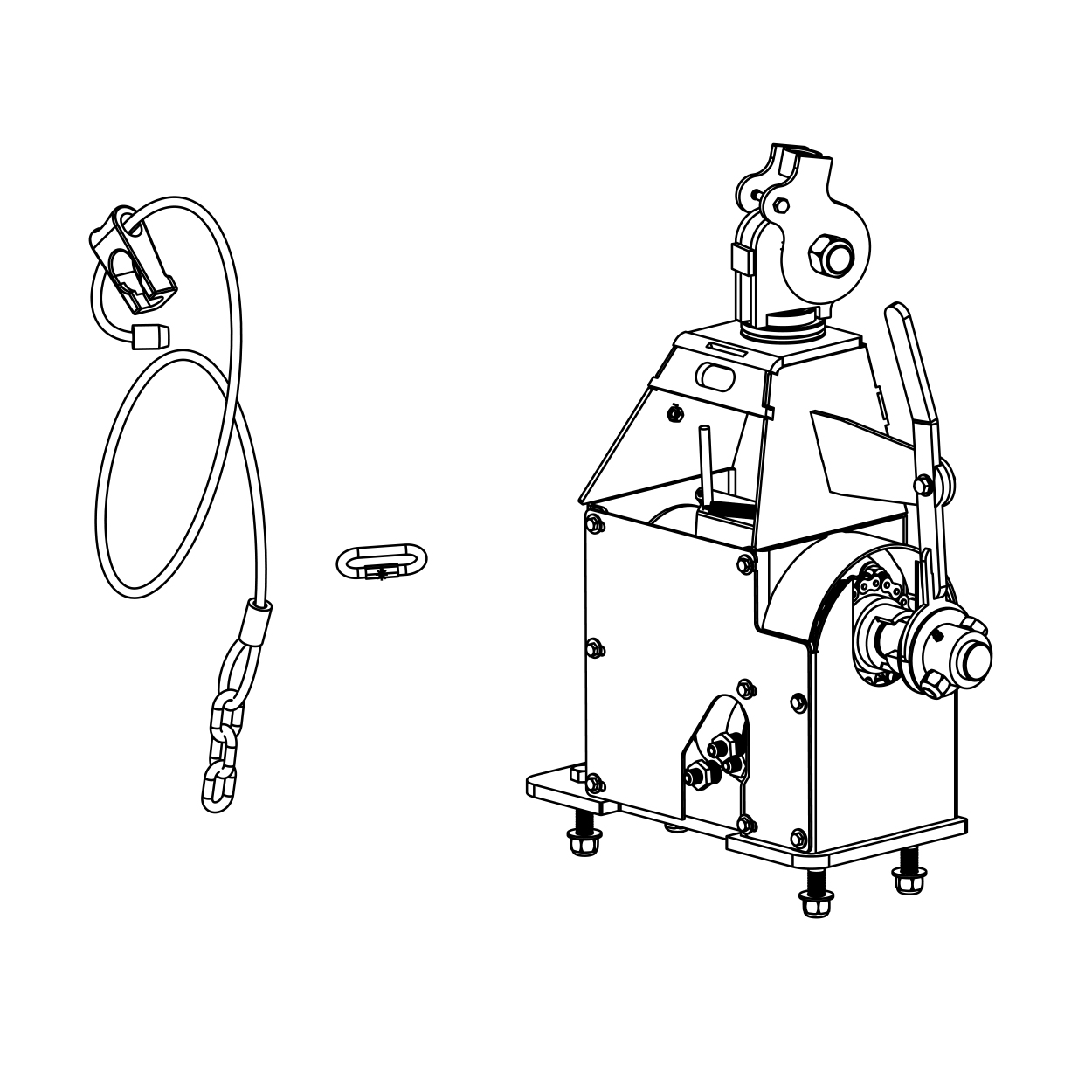

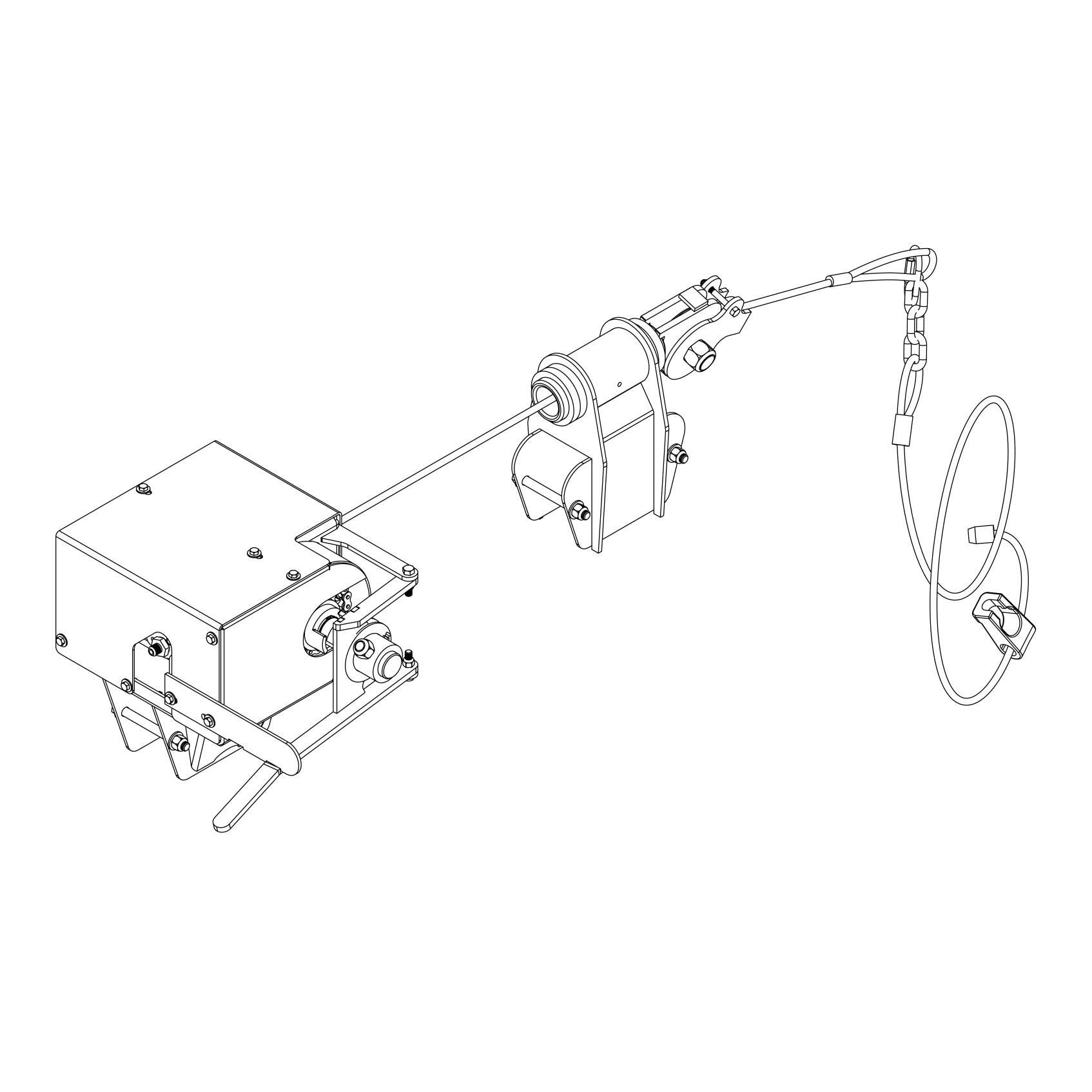

4000 lbs Winch |
|

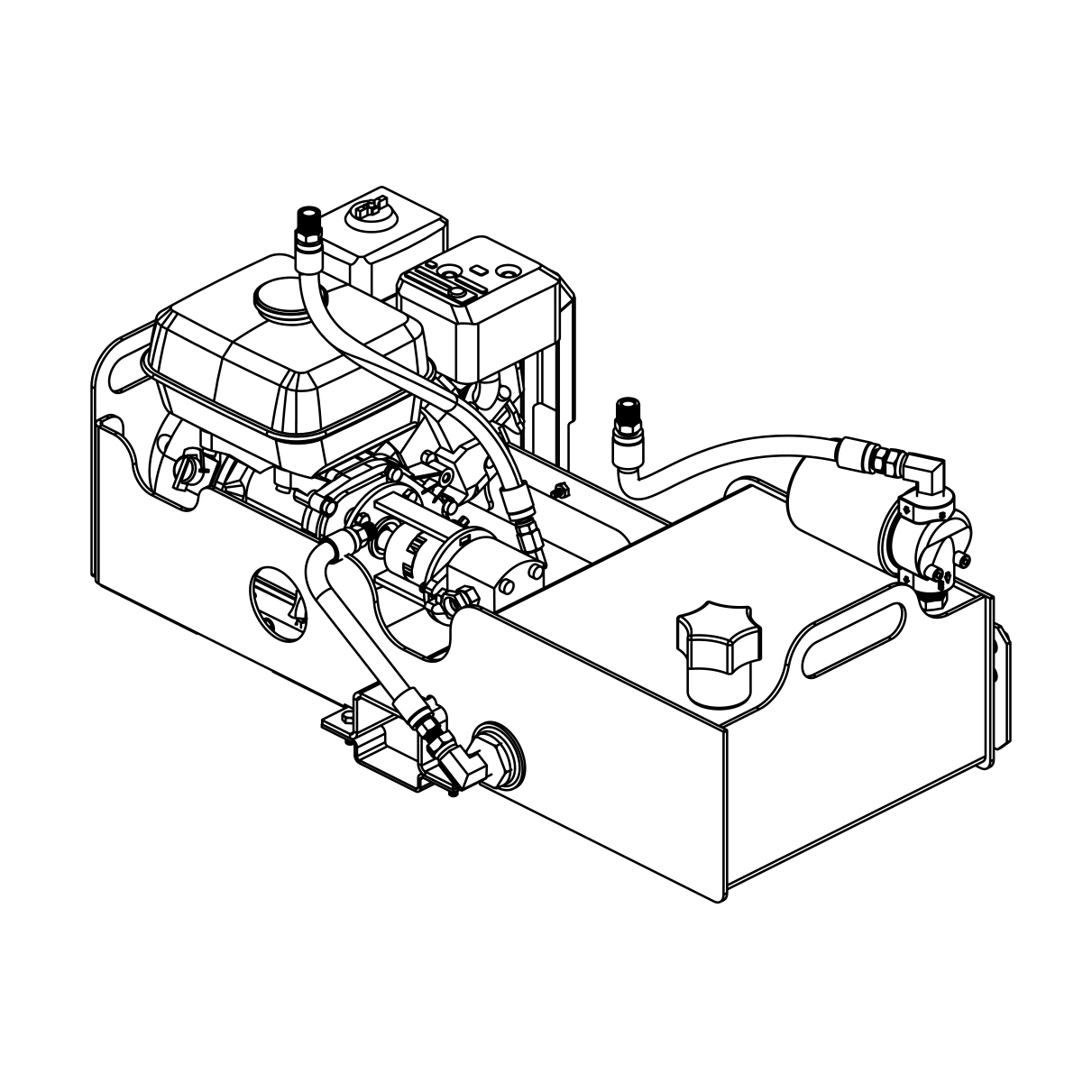

5.5 HP Power unit |
|
12" Bucket |
|
7' Gravel bin with cylinder |
|
3D illustrative model for your reference only, for more information about our log loader, contact us
