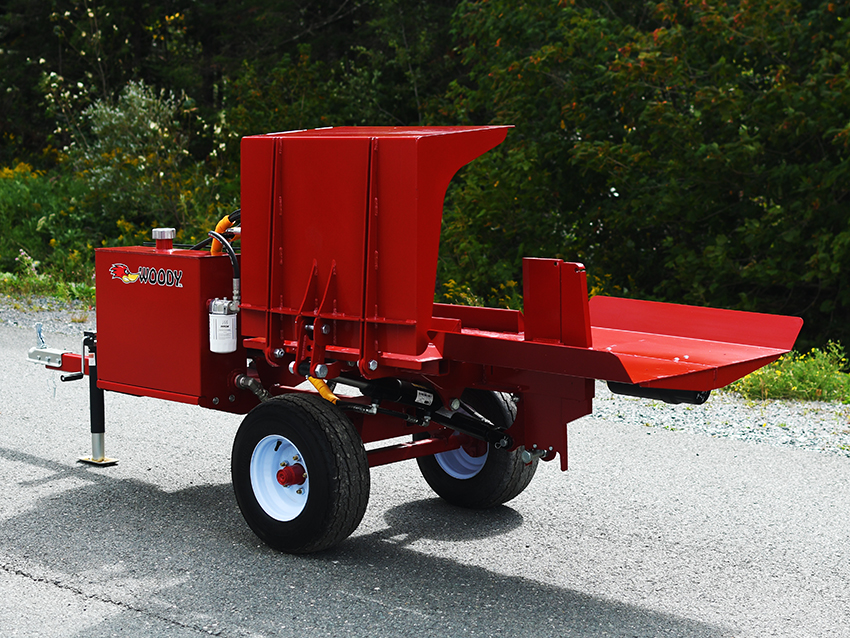

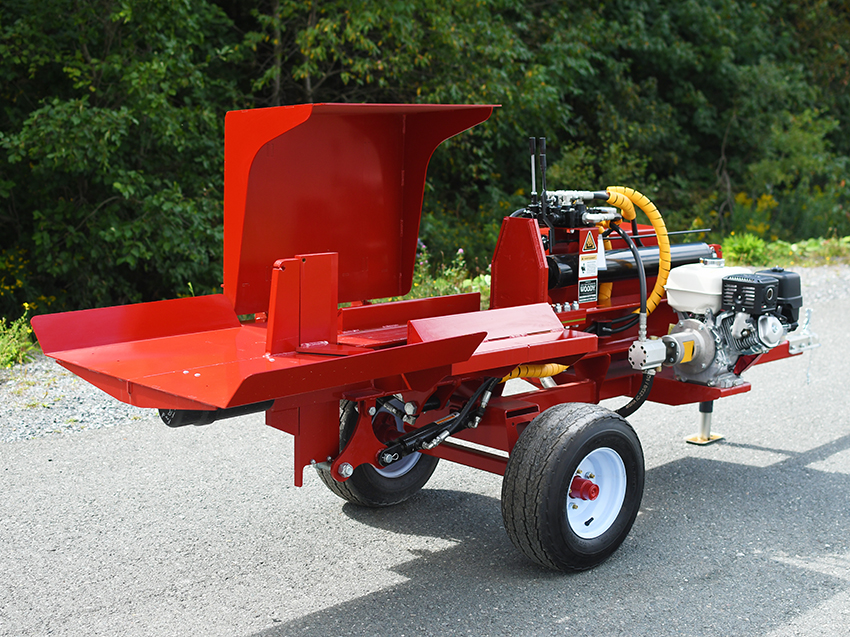

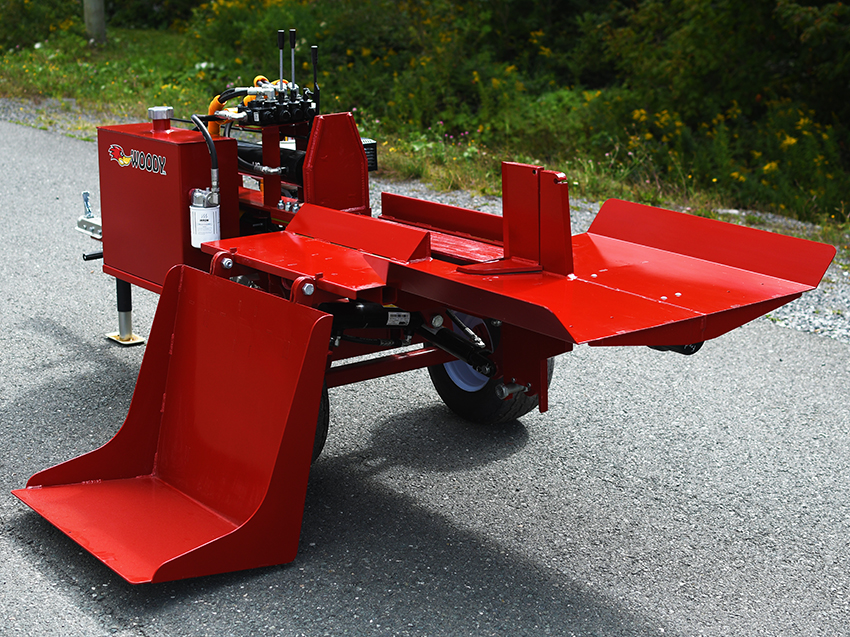

This Woody 40-30 4-Way Wedge Standalone log Splitter model is designed for commercial use. It is equipped with a 9 HP Honda engine, a 13.0/4.2gpm 2 stage pump, a 15 gallon tank, a stroke length of 30”,a Log lifting, a 2” hitch coupler and this splitter is equipped with a lever to adjust the cut to 3 different positions. It can split wood in the horizontal position.
LOG SPLITTER | |
TECHNICAL SPECIFICATION | |
Tonnage | 20 Tons |
Stroke lenght | 30'' |
Stroke Complet cycle | 13 Secondes |
Tires | 20.5 x 8-10 |
Position | Horizontal |
HYDRAULIC | |

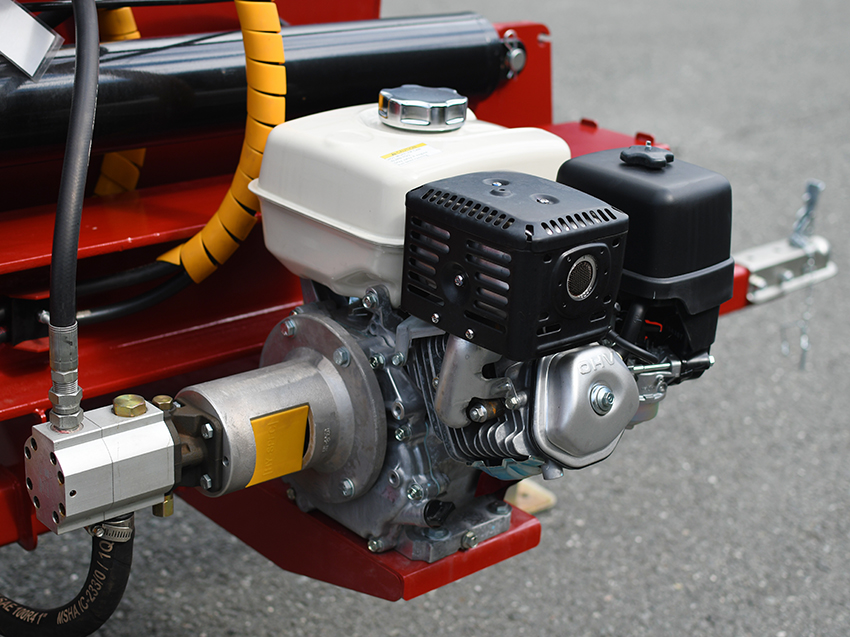

Motorisation | Honda 9 HP |
HYDRAULIC Power | 2 Stages Pump |
Oil Flow | 13.0 / 4.2 GPM |
Oil Tank | 15 Gallons |

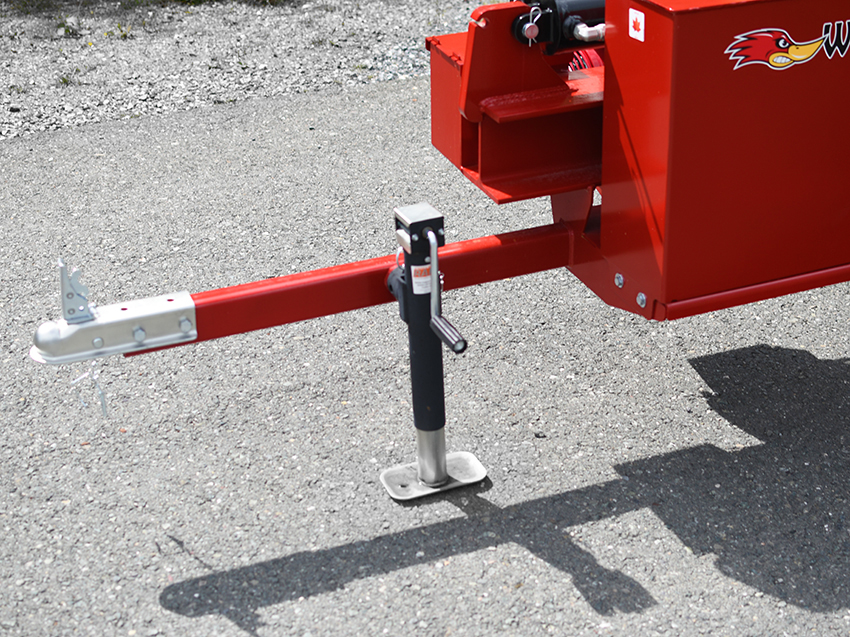

Attachments | 2'' hitch coupler |

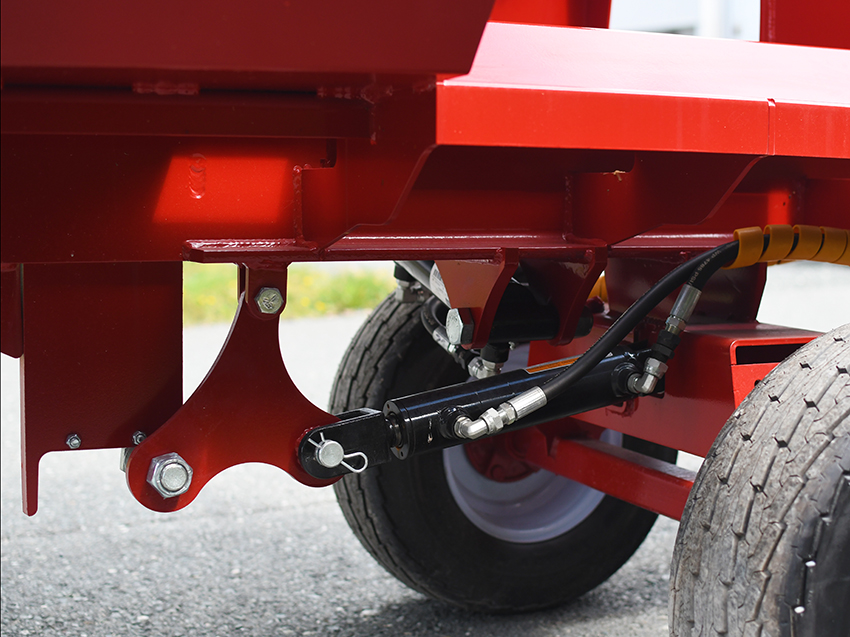

Hydraulique arm lift | Inclus |

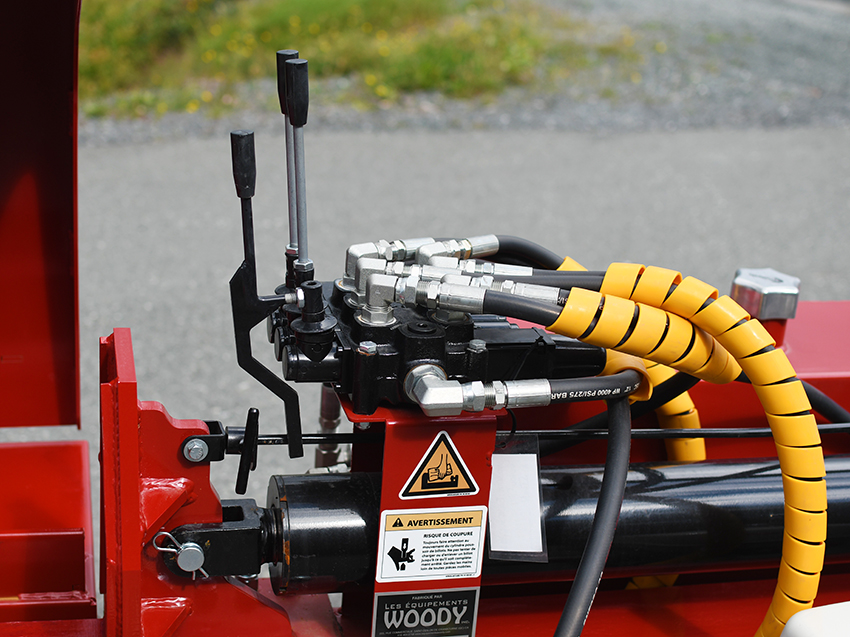

Lever to adjust cutting | 3 differents cutting positions |
OPTION | |
Hydraulic knife | |
