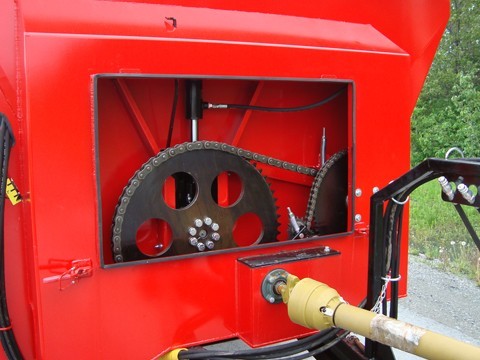

Our spreaders are equipped with a closed mechanism with oil bath and equipped with grade H chain, a sealed gearbox, a shear bolt, a double seal on the PTO, flashing lights with L.E.D. at the rear, an unequaled and unique steel treatment before the application of paint, an epoxy primer and a urethane paint. The central screw is equipped with two cylinders allowing it to move vertically in the tank and the evacuation device is equipped with reversible and interchangeable fingers in CHT 400 steel.

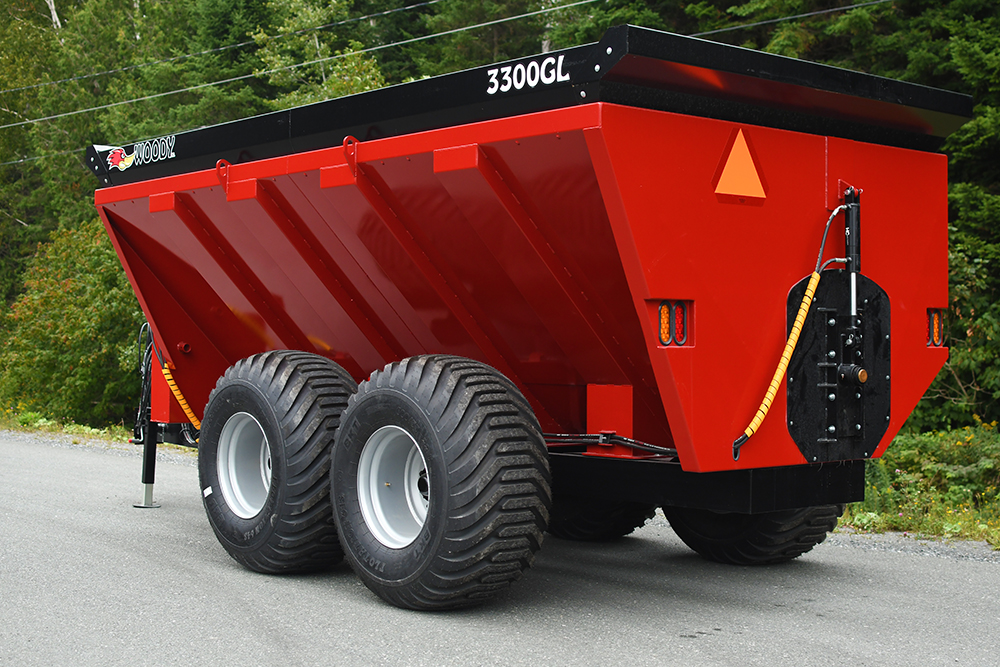

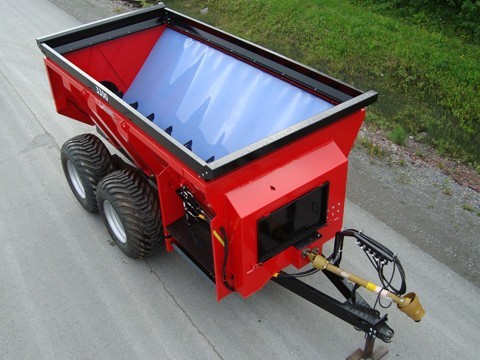

SPREADER 3300 | |
Recommended Vehicle | 150 HP + |

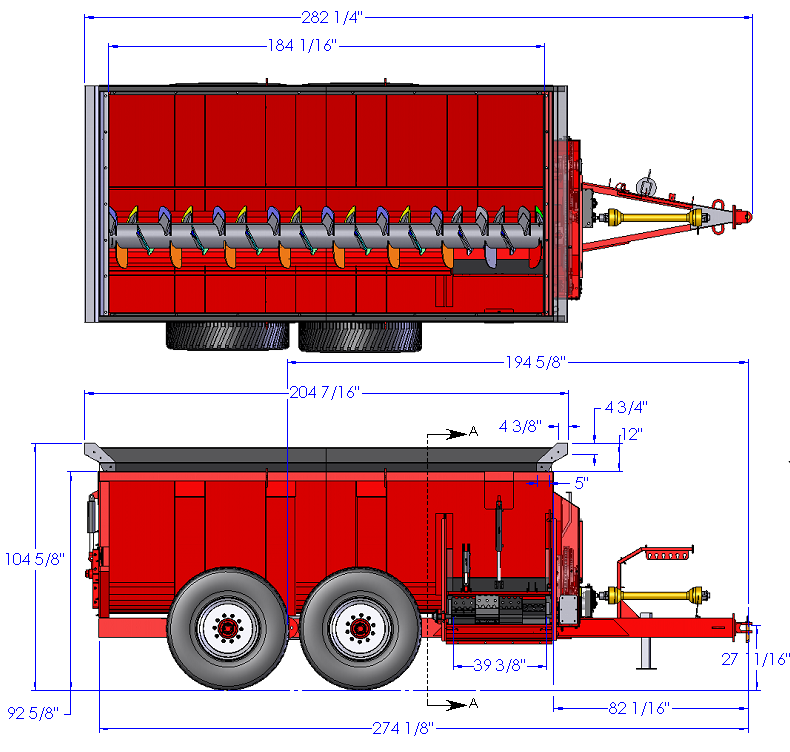

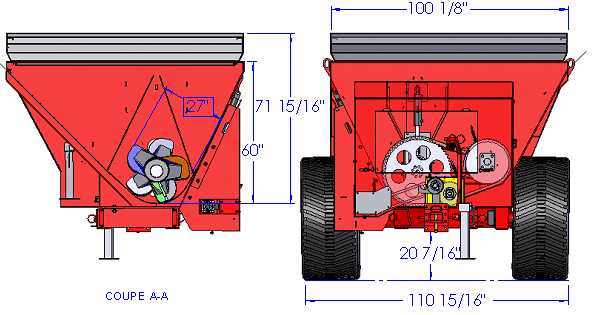

DIMENSIONS | |
Overall length | 21' 7'' |
Gallons Capacity | 3300 |
Tank, Length x Width | 16' X 8' 4'' |
Height | 8' 9'' |
Tank thinkness | 3/16'' |
Tandem axle | YES |
Hub Diameter | 4'' |
Hub Capacity | 16 000 lbs 10 nuts |

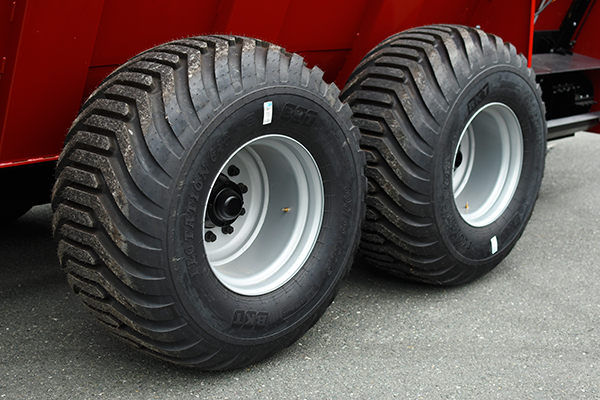

Tire (Standard) | 600-55-22.5 16 plis |
TECHNICAL SPECIFICATION | |
PTO RPM | 1000 rpm |
Endless Screw RPM | 25 rpm |
Evacuation system RPM | 900 rpm |
Evacuation system diameter | 18'' |
Width Evacuation system | 45'' |
Evacuation door (Length x Width) | 40'' X 14'' |
Proximity Deflector | YES |
VOLUME | 383 Cubic feet |
2869 US gallons | |
2389 Imperial gallons | |
WEIGHT | |
Weight without tire | 8 400 lbs |
Total Weight | 10 000 lbs |
