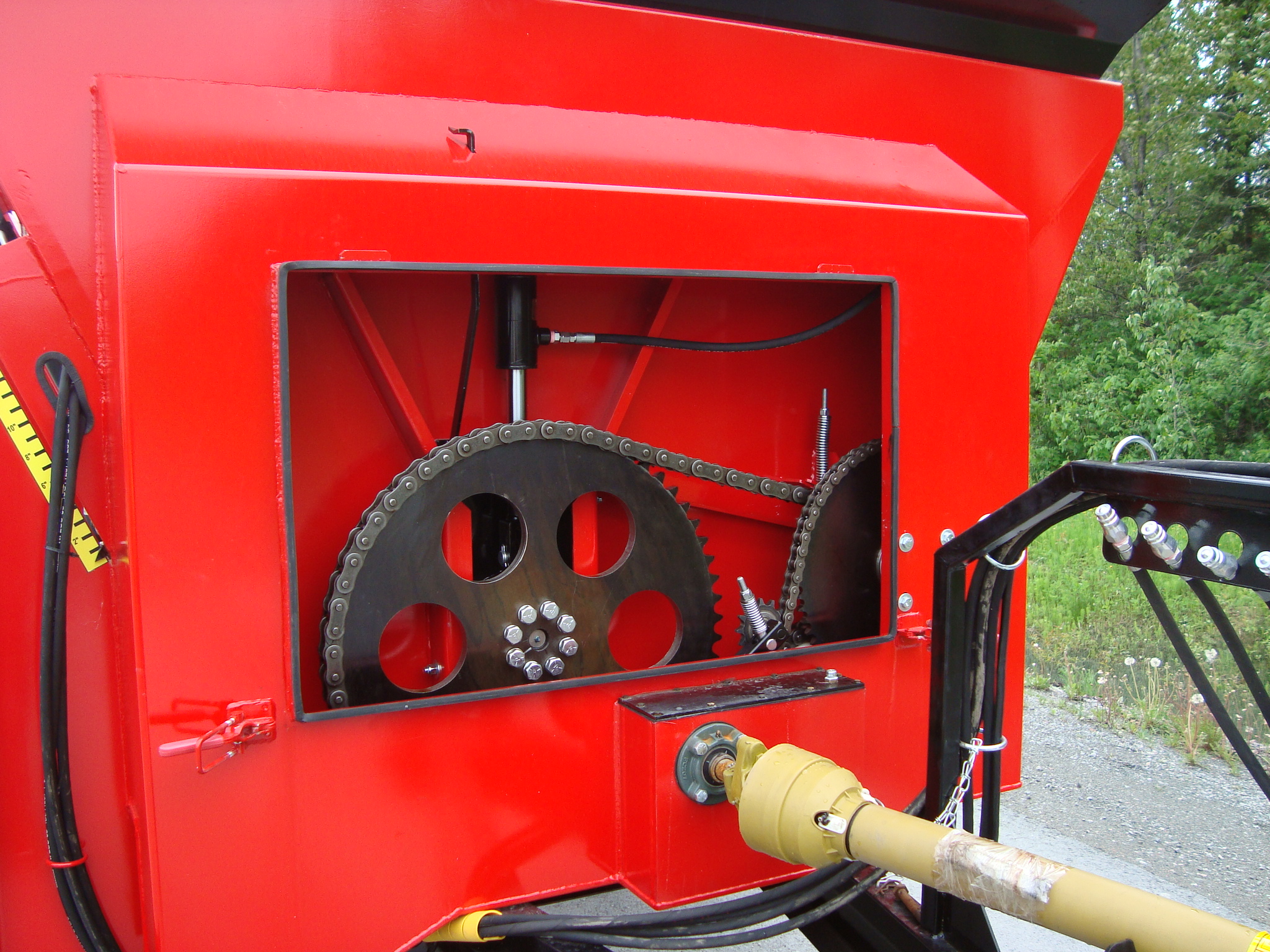

Our spreaders are equipped with a closed mechanism with oil bath and equipped with grade H chain, a sealed gearbox, a shear bolt, a double seal on the PTO, flashing lights with L.E.D. at the rear, an unequaled and unique steel treatment before the application of paint, an epoxy primer and a urethane paint. The central screw is equipped with two cylinders allowing it to move vertically in the tank and the evacuation device is equipped with reversible and interchangeable fingers in CHT 400 steel.
SPREADER 2500 | |
Recommended Vehicle | 100 HP + |
DIMENSIONS | |
Overall length | 21' 7'' |
Gallons Capacity | 2500 |
Tank, Length x Width | 16' X 7' 4'' |
Height | 7' 8'' |
Tank thinkness | 3/16'' |
Tandem axle | YES |
Hub Diameter | 4'' |
Hub Capacity | 16 000 lbs 10 nuts |
Tire (Standard) | 600-55-22.5 16 plis |
TECHNICAL SPECIFICATION | |
PTO RPM | 1000 rpm |
Endless Screw RPM | 25 rpm |
Evacuation system RPM | 900 rpm |
Evacuation system diameter | 18'' |
Width Evacuation system | 45'' |
Evacuation door (Length x Width) | 40'' X 14'' |
Proximity Deflector | YES |
VOLUME | 8104 Litres |
2140 US Gallons | |
1782 Imperial Gallons | |
WEIGHT | |
Weight without tire | 6500 lbs |
Total Weight | 7800 lbs |

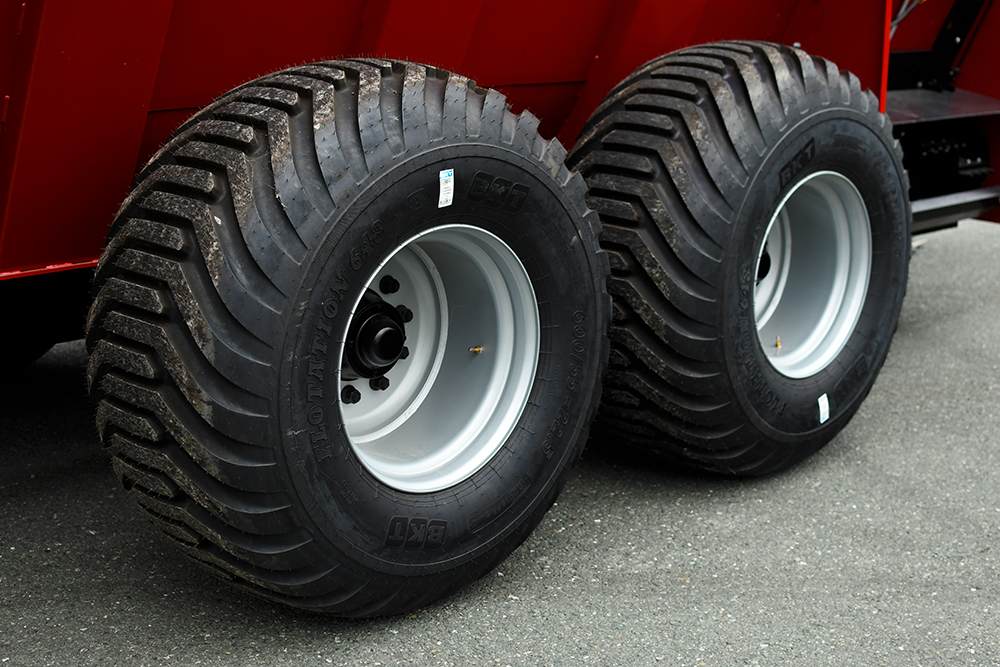

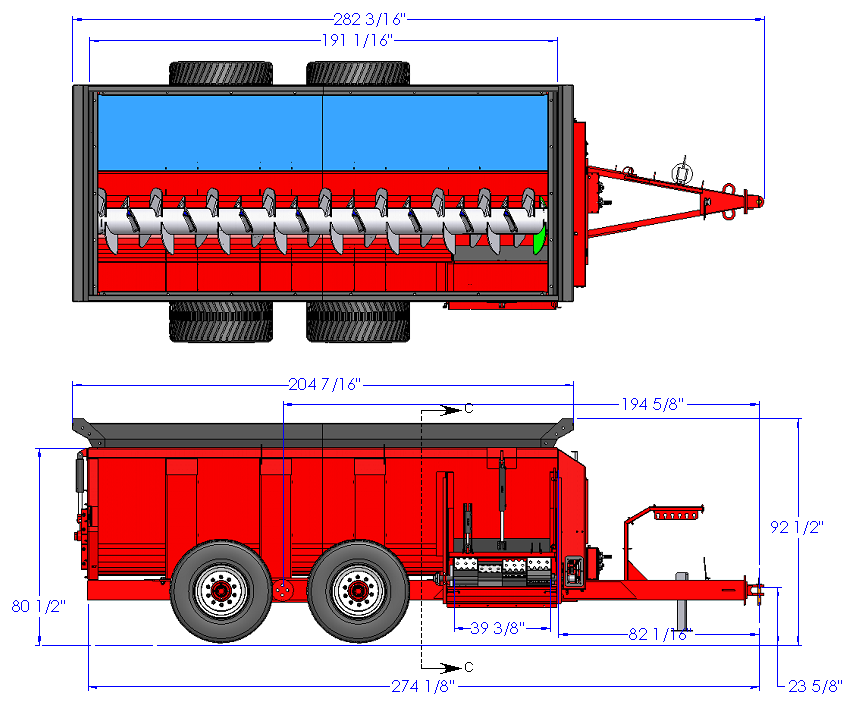

2500 Gallons - Tire 550-45-22.5 SKU# 48-006 (Image below)

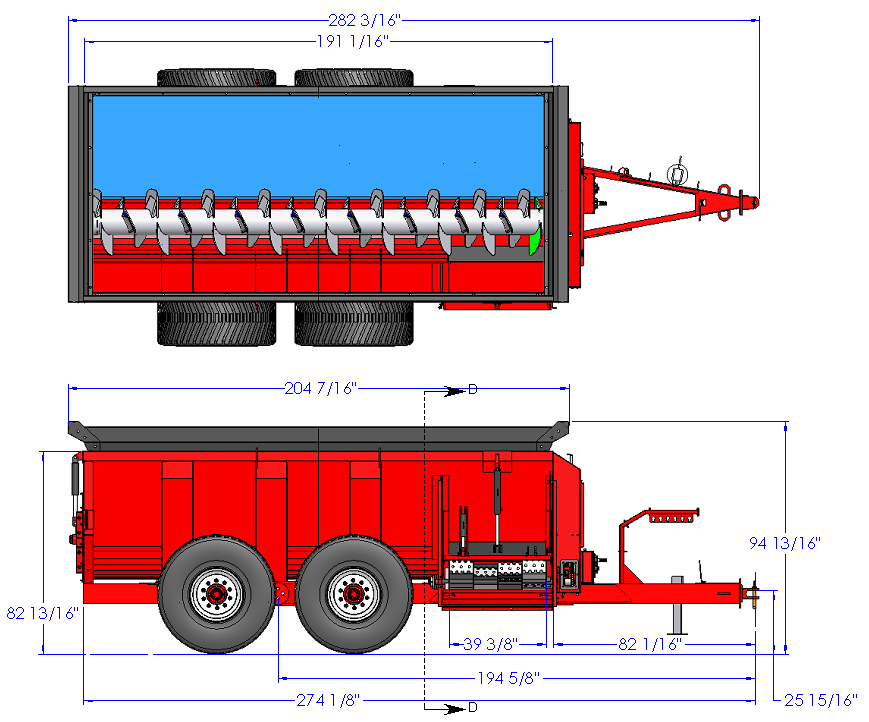

2500 Gallons - Tire 600-55-22.5 SKU# 48-008-00 (Image below)
