Woody Equipments is proud to present our new 9-58 HV. Our new design lower the gravity center for more wood. Compatibility with 95HD and 105HD log loader.
FORESTRY TRAILER | |
|---|---|
Compatible with log loaders |
|
| |
DIMENSIONS | |
Load length | 105'' (8' 9'') |
Overall length | 174'' (14' 6'') |
Overall Width | 58'' |
Gross trailer weight | 1642 lbs |
CAPACITY | |
Axle capacity | 3500 lbs / Chacun |
Trailer tonnage | 2 Tonnes / 4000 lbs |
Volume | 75,8 Cubic Feets |
0,3 Wood Cords of (4'x8'x8') | |
CHARACTERISTICS | |

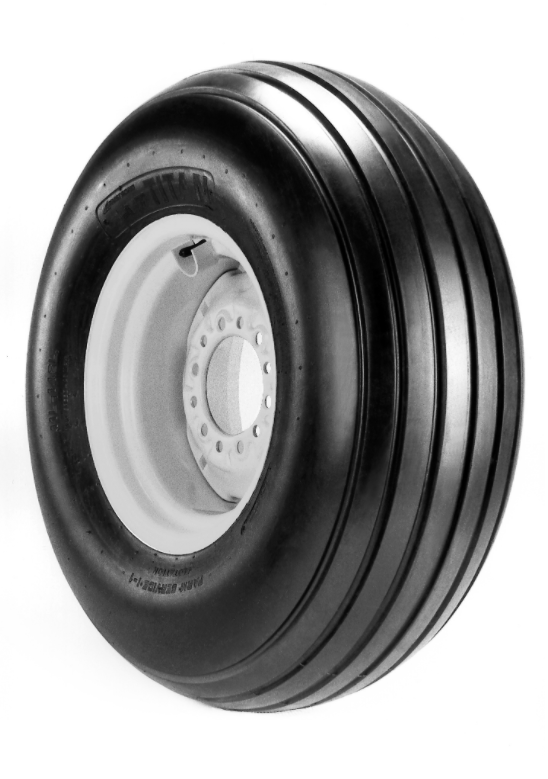

Tires |
|
Adjustable 24'' hydraulic axle | Manually |
Protective Grid | Inclusive |
Number of posts | 8 |
OPTION | #SKU |
Ski |
|

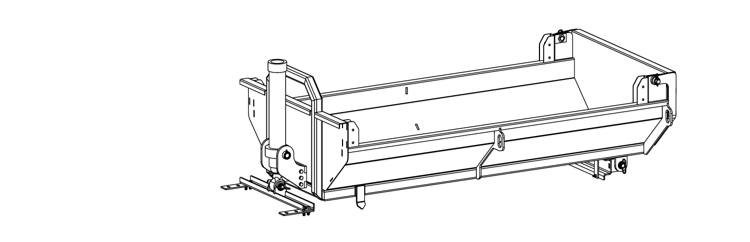

Gravel bin 8' with cylinder |
|

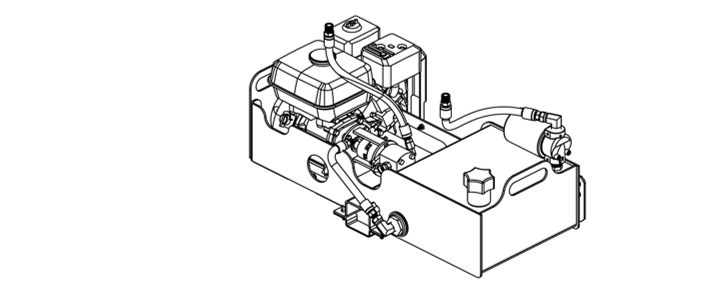

Power unit 5.5HP |
|
Single bolted drawbar with stool (105HD) |
|
Small drawbar without platform (95HD) |
|
Simple articulated drawbar without platform (95HD) |
|
Simple articulated drawbar with platform (105HD) |
|

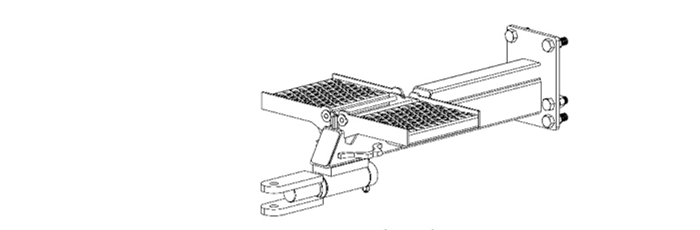

SMALL REMOVABLE DRAWBAR WITH STEP PLATFORM — ASSEMBLY 59‑076‑26
