Woody Equipment is proud to introduce our 10-66 HV in its new version. Almost entirely redesigned, it will allow you to handle more loads with a lower center of gravity than before. Our new 10-66 HV trailer is compatible with the 115HD loader model.
FORESTRY TRAILER | |
Compatible with the log loader | |

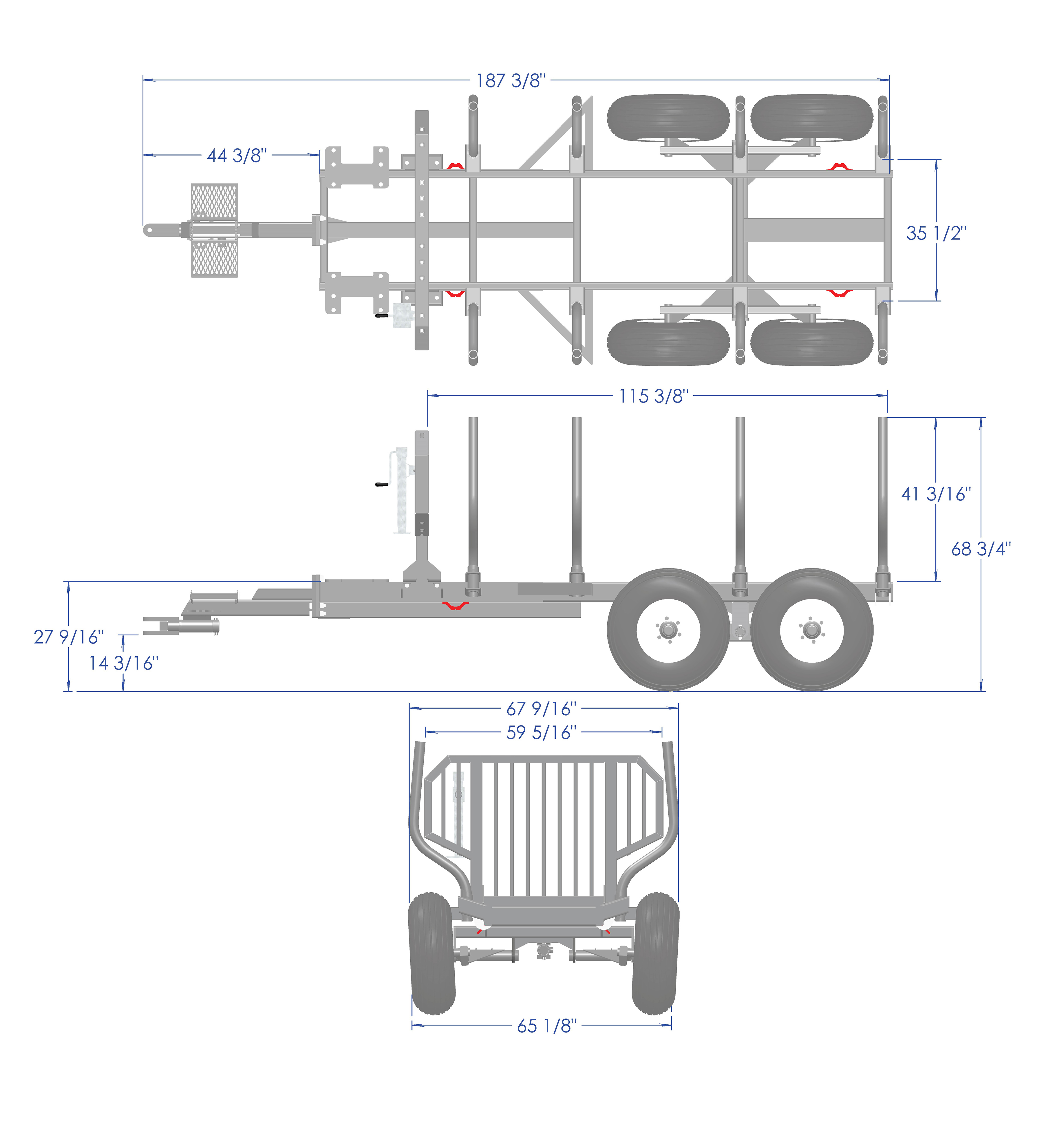

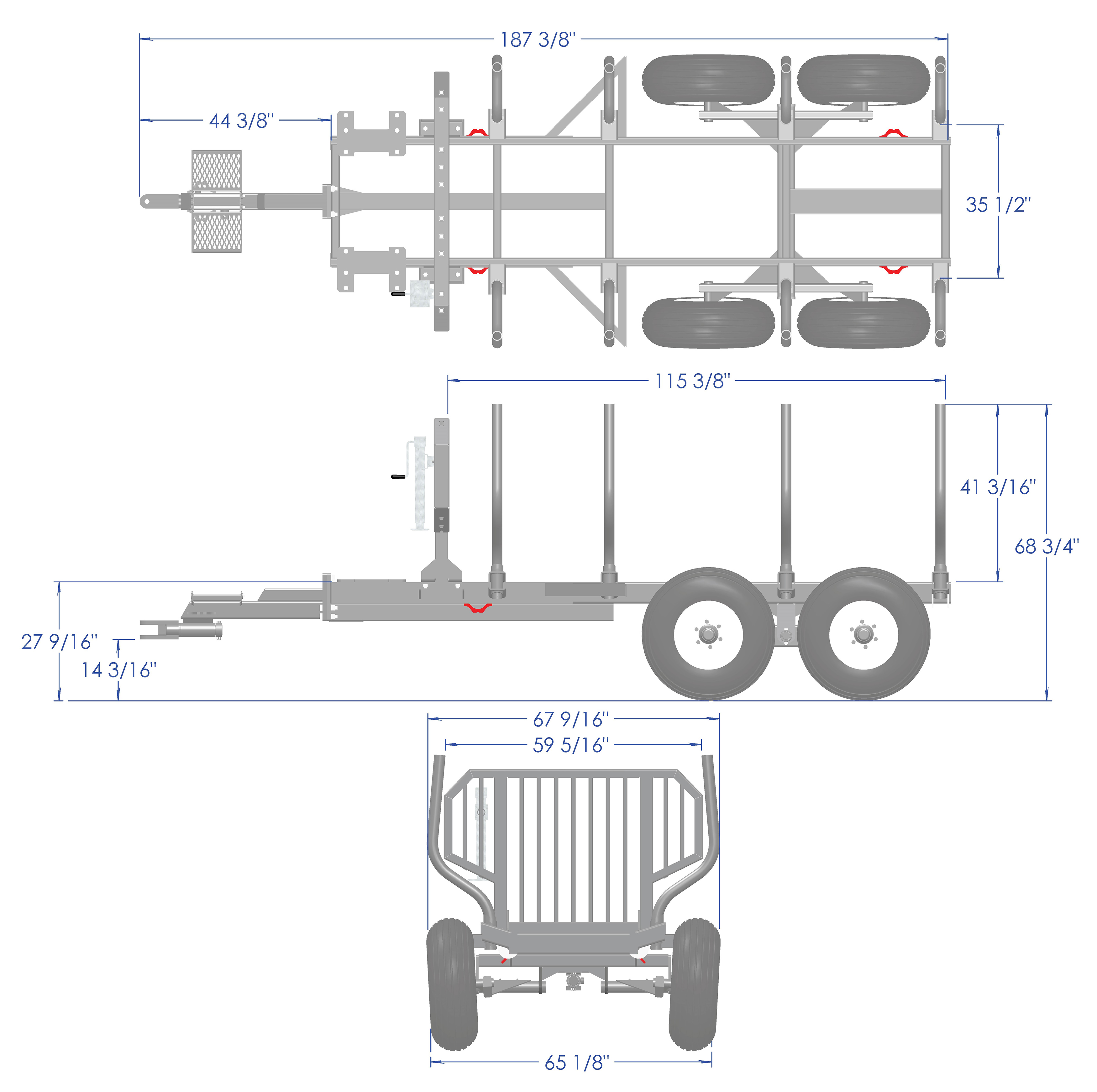

DIMENSIONS | |
Load length | 116'' (9' 9'') |
Overall length | 188'' (15' 7'') |
Overall Width | 69'' |
Gross trailer weight | 1796 lbs |
CAPACITY | |
Axle capacity | 5000 lbs / chacun |
Trailer tonnage | 5 Tons / 10000 lbs |
Volume | 136,2 Cubic Feet |
0,53 Wood Cords (4'x8'x8') | |
CHARACTERISTICS | |
Protective Grid | Inclusive |
Number of posts | 8 |
Tires | 11L15, 8 ply |

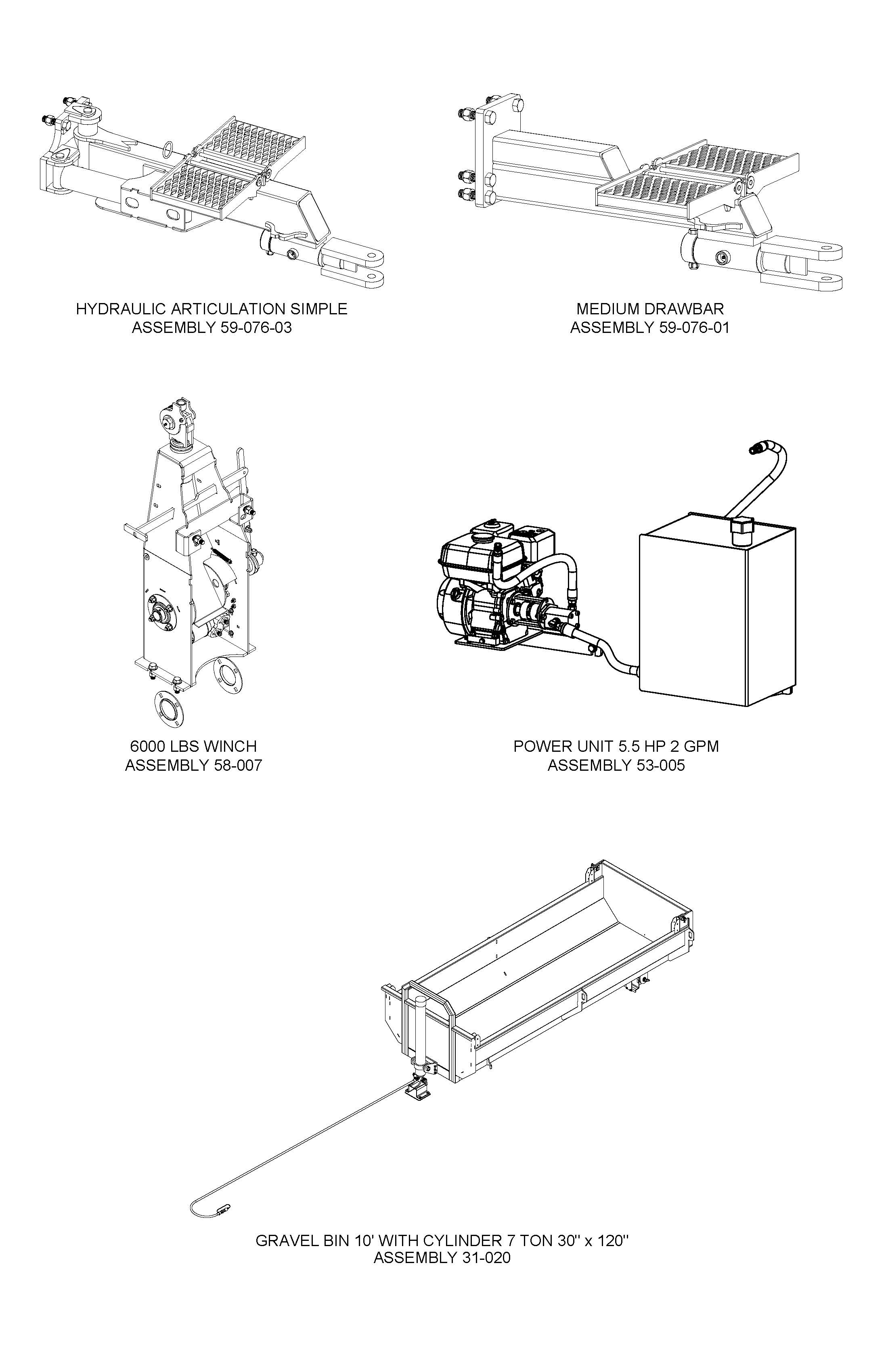

OPTION | #SKU |
Gravel bin 7' with hydraulic cylinder | 31-020 |
Power unit 5.5 HP | 53-005 |
Hydraulic articulation simple | 59-076-03 |
Medium drawbar | 59-076-01 |
Tires options | 12.5L15, 10 ply |
