The Woody side brush cutters feature a proven and efficient mechanical system. They come equipped with two Category 40 P.T.O.s, with an integrated clutch positioned strategically on one of them to safeguard the system. Additionally, they incorporate a 50hp gearbox with a 1:1.5 ratio and a second 50hp gearbox with a 1:1.12 ratio. These brush cutters have a rotating plate with a pivoting knife at each end, easing the workload on the clutch.
MODEL | 4' FLEX | 5' FLEX | 6' FLEX |
VEHICLE | 52-032 | 52-030 | 52-033 |
Recommended vehicle | 40 HP | 60 HP | 80 HP |
Minimum tractor Weight (Recommended) | 4000 lbs | 7000 lbs | 8000 lbs |
DIMENSIONS | |||
Cutter width dimensions | 48" | 60" | 72" |

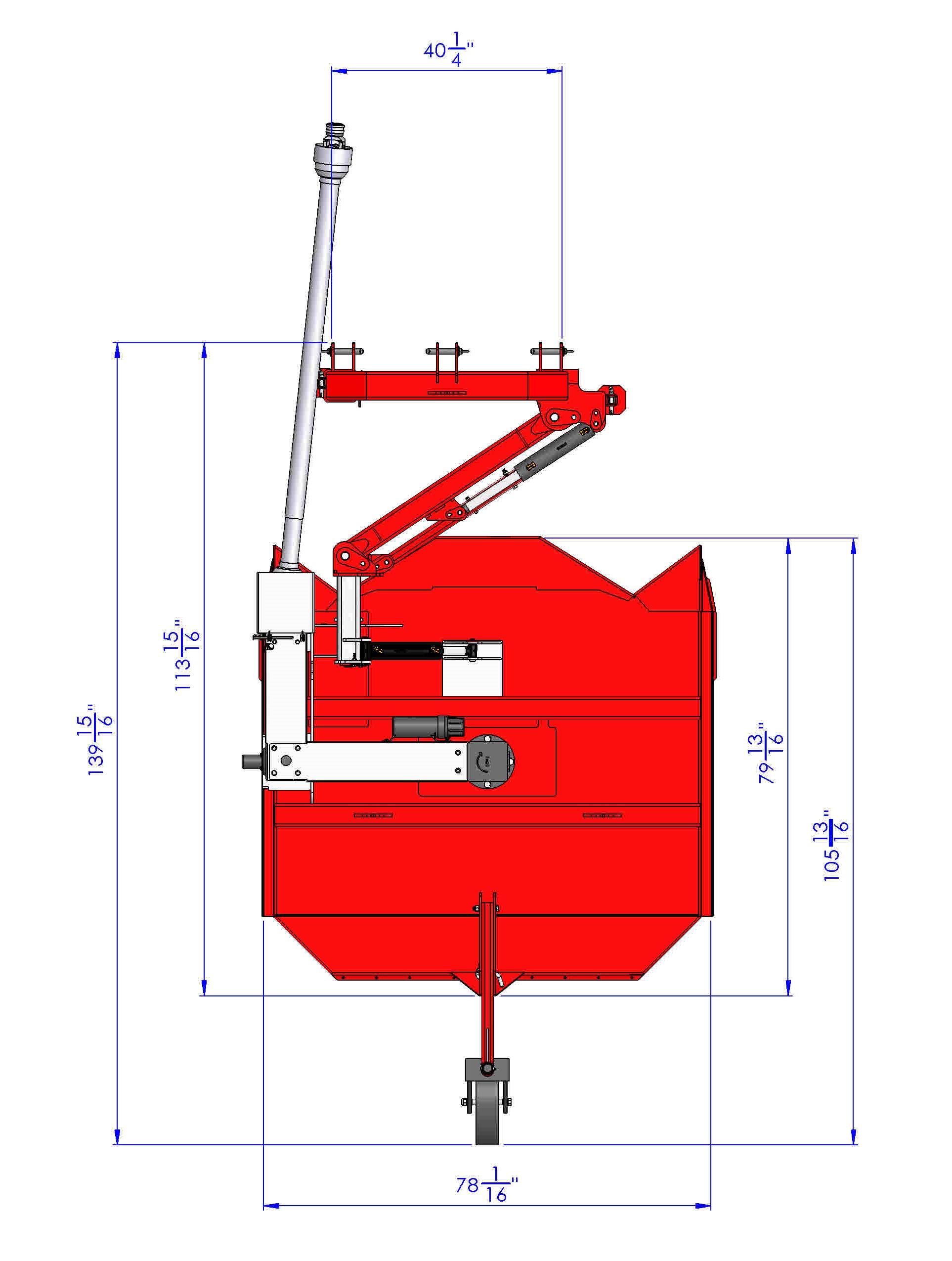

Lateral Extension (A) | 73"(A) | 86"(A) | 101"(A) |
Blade rotation +/- | 910 rpm | 910 rpm | 910 rpm |
P.T.O. | 540 | 540 | 540 |
P.T.O. Clutch | Standard | Standard | Standard |
P.T.O. Category | 40 | 50 | 50 |
Gearbox (capacity) | 40 HP | 60 HP | 60 HP |
Trigger Protection system | Standard | Standard | Standard |
Anti projection for Backward Protection (3/8 chain) | Optionnel | Optionnel | Optionnel |
Optional Rear Wheel | Standard | Optionnel | Optionnel |
WEIGHT | |||
Weight of the brush cutters | 1050 lbs | 1470 lbs | 2180 lbs |
On the other hand, the FLEX brush cutters boast a secure hydraulic system with two double-action hydraulic lift systems. They also include a ball valve on the lifting system for maintenance safety, a hydraulic arm to extend the maximum cutting reach, and a hydraulic pivot to position the mower at different levels and angles.
Compared to other brush cutter systems, the Woody produces small debris, making it highly effective for maintaining large areas. Ideal for clearing the edges of agricultural fields and forest paths, the Woody stands out for its exceptional performance.
