Ideal for 100 HP and more Tractors

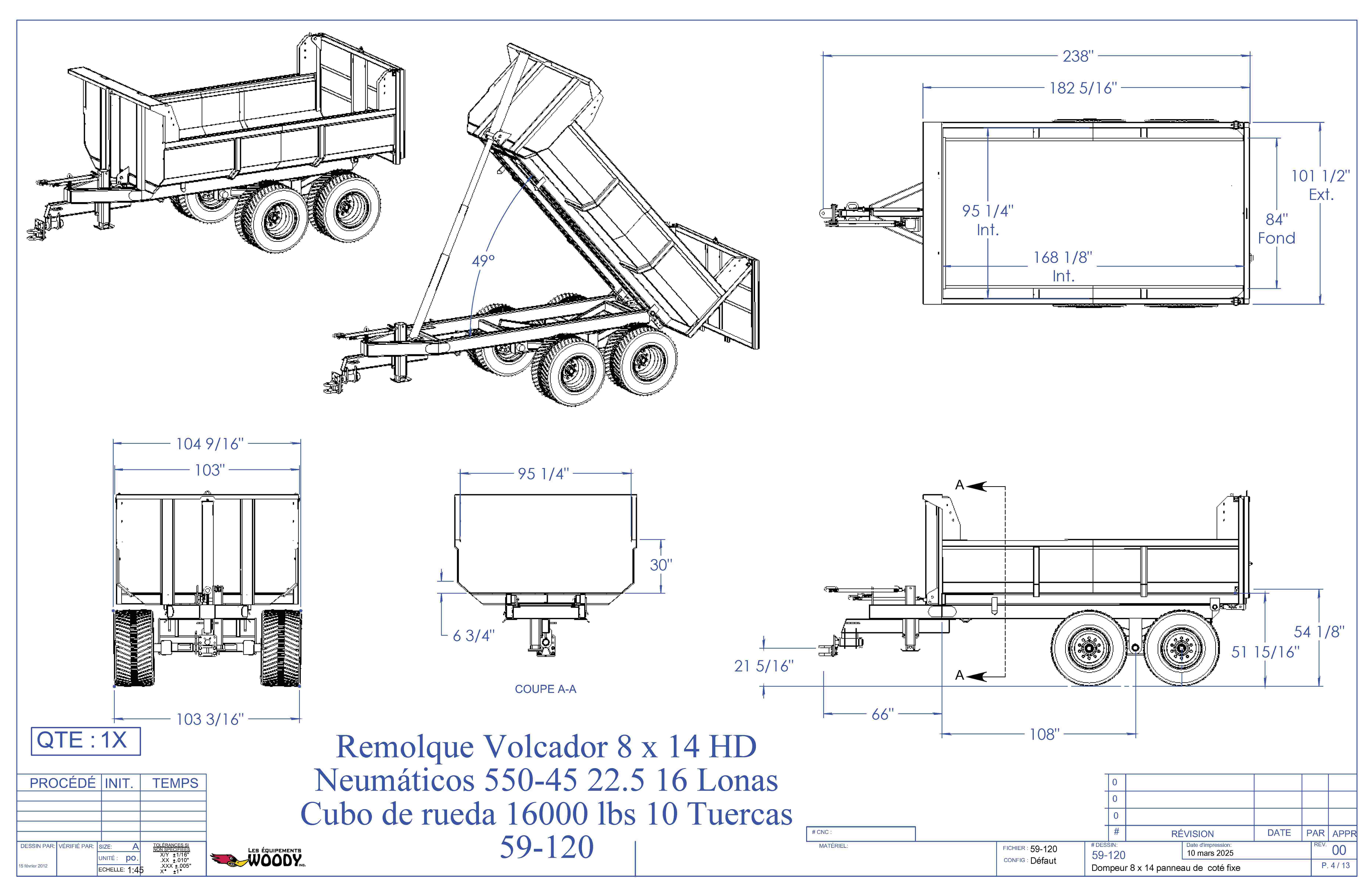

814 V Series Dump trailer
Assembly part no.: 59-120
DUMP TRAILER | |
DIMENSIONS | |
Trailer | 96" x 168" |
Side pannel | 30" |
Floor height | 50" |
Lateral wall height | 80" |
Front and back pannel (removable) | 54" |
TECHNICAL SPECIFICATION | |
Load | 20 tons |
Axle | 10 bolts |
Axle capacity | 16000 lbs |
Cylinder | 1 x 20 ton |
Manual trailer hitch | 8000 lbs |
VOLUME | |
Without (extra side pannel ) | 278 cubic feets |
With (extra side pannel) | 503 cubic feets |
INFORMATIONS | |
Back pannel openning | Automatic |
Grain doors | Standard |
Axle | Tandem |
Clevis coupling | Standard |
Standard Tires | 425/65-22.5, 20 ply |
550/45-22.5, 16 ply | |
WEIGHT | |
Approx Weight | 9000 lbs |
