Ideal for 25 - 45 HP Compact tractors

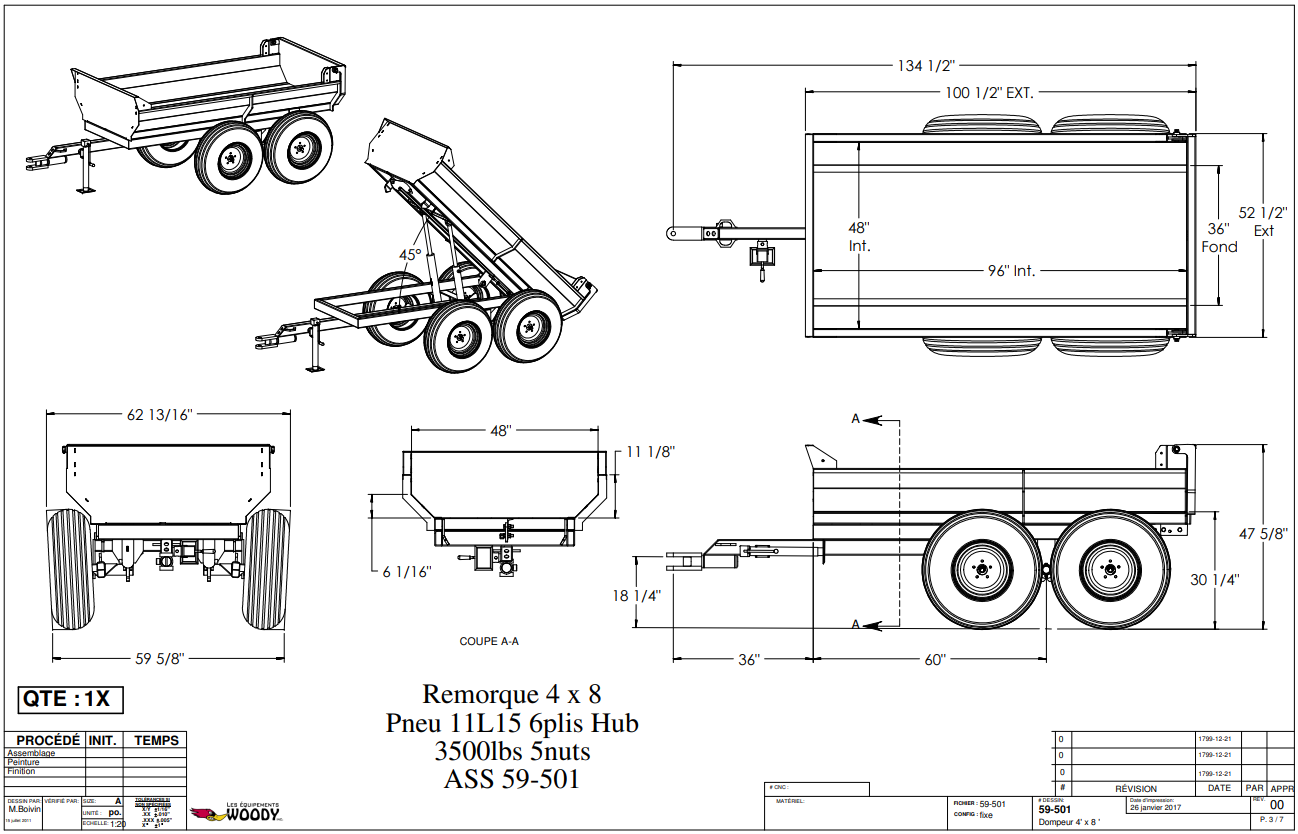

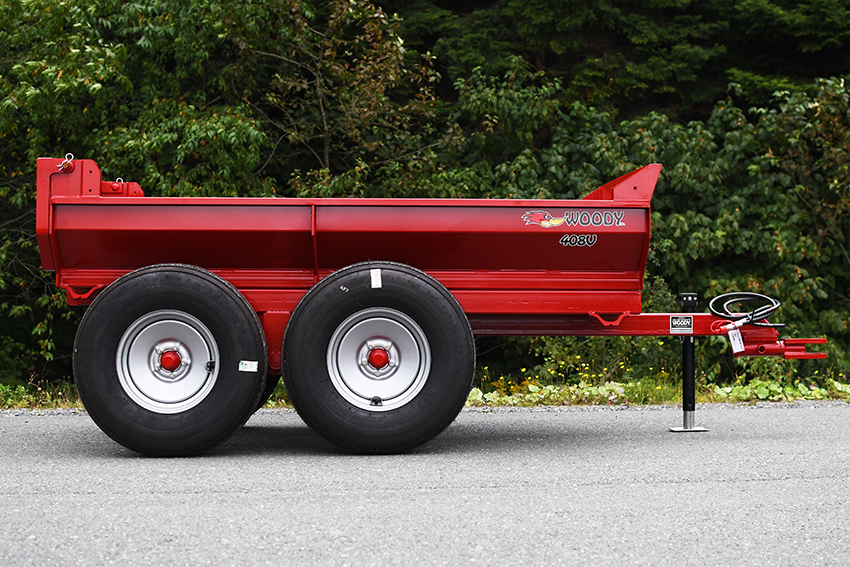

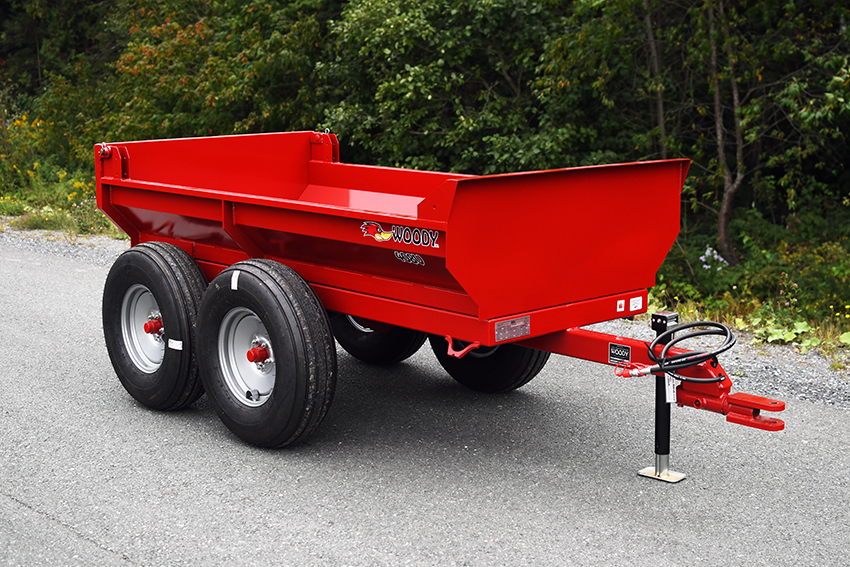

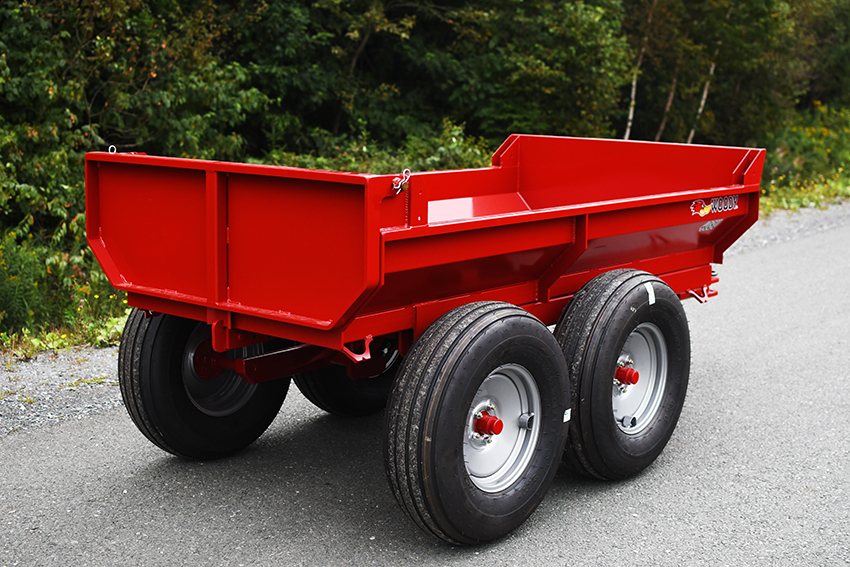

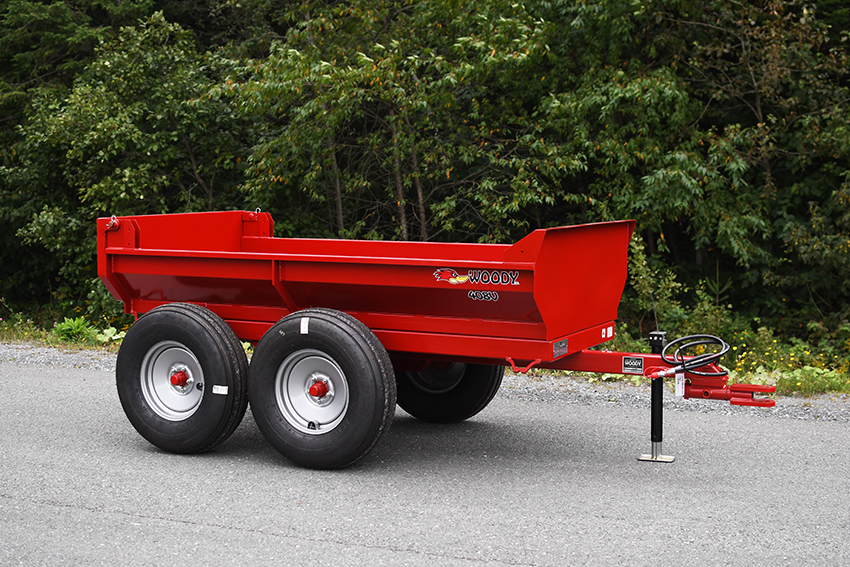

408 V Series Dump trailer
Assembly part no.: 59-501
DUMP TRAILER | |
DIMENSIONS | |
Trailer | 48" x 98" |
Side pannel | 11" |
Floor height | 30" |
Lateral wall height | 41" |
Front and back pannel (removable) | 17.5" |
TECHNICAL SPECIFICATION | |
Load | 4 tonnes |
Axle | 5 bolts |
Axle capacity | 3500 lbs |
Cylinder | 2 x 25-18 simple actions |
manual trailer hitch | 3000 lbs |
VOLUME | |
Without (extra side pannel ) | 27 cubic feets |
with (extra side pannel) | 43 cubic feets |
INFORMATIONS | |
Back pannel openning | automatic |
Grain doors | optionnel |
Axle | Tandem |
Clevis coupling | standard |

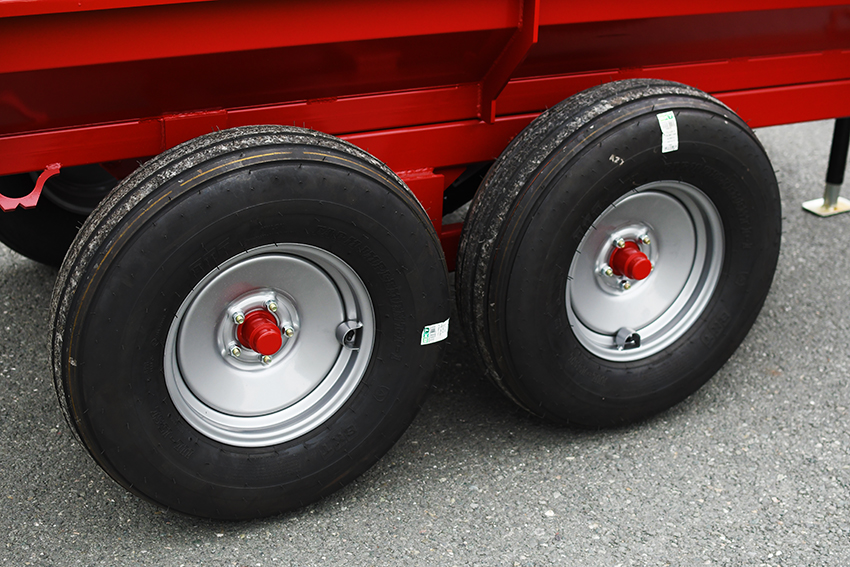

Standard Tires | 11L15, 8 plis |
WEIGHT | |
Approx Weight | 1200 lbs |
