Recommended for ATVs, Side by Sides and 18-25 HP Small Tractors You can choose to have the hydraulic Power Unit option or not. It is equipped with a movable axle, if needed.
407 V Series Dump trailer

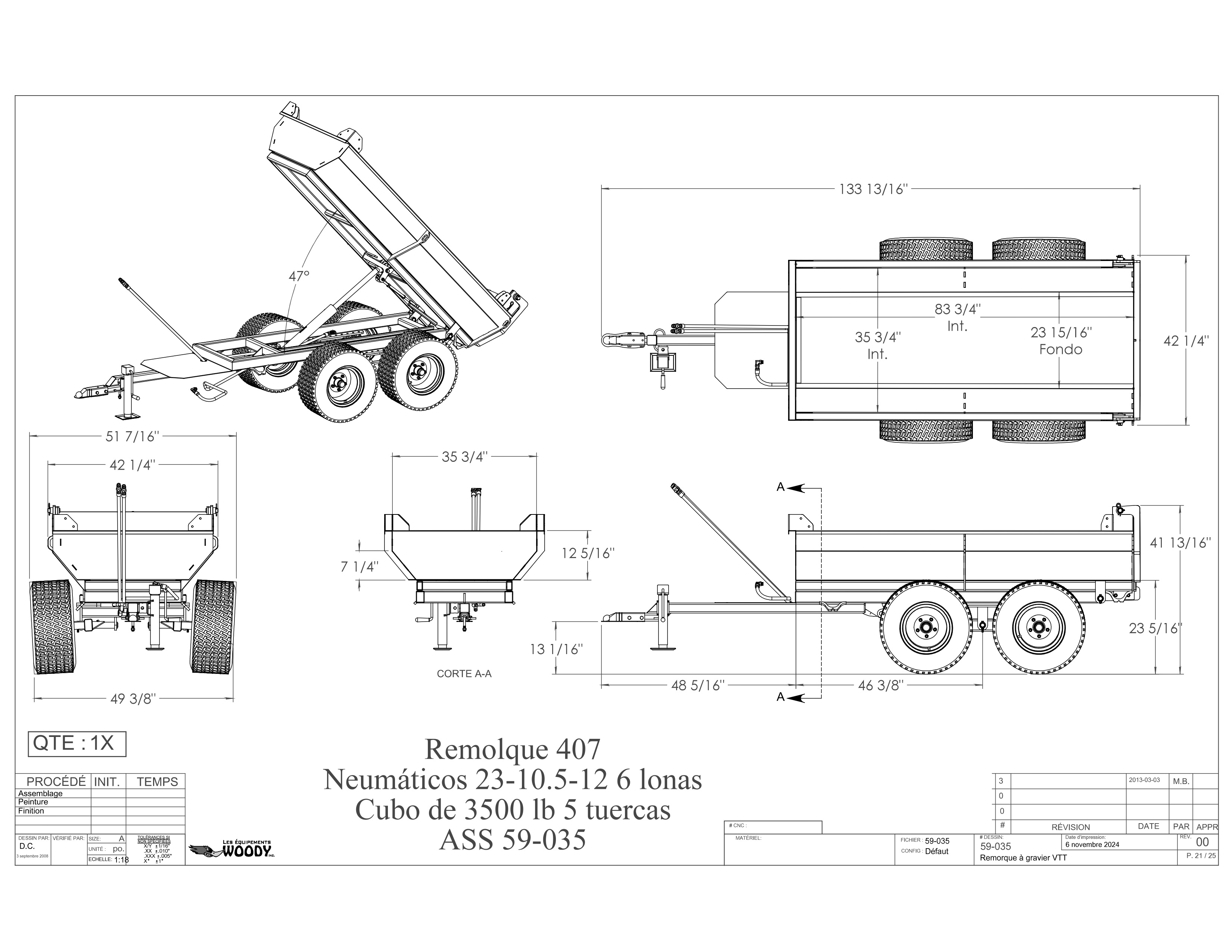

Assembly part no.: 59-035
DUMP TRAILER | |
DIMENSIONS | |
Trailer | 36" x 84" |
Side pannel | 12.5" |
Floor height | 23.5" |
Lateral wall height | 36" |
Front and back pannel (removable) | 19" |
TECHNICAL SPECIFICATION | |
Load | 3500 lbs |
Axle | 5 bolts |
Axle capacity | 3500 lbs |
Cylinder | 2 x 25-18 simple actions |
manual trailer hitch | 3 tons |
VOLUME | |
Without (extra side pannel ) | 19 cubic feets |
with (extra side pannel) | 26 cubic feets |
INFORMATIONS | |
Back pannel openning | automatic |
Grain doors | optionnel |
Axle | Tandem |
clevis coupling | standard |
Standard Tires | 23 10.5-12, 6 plis |
2" hitch ball | 2'' |
WEIGHT | |
Approx Weight | 900 lbs |
