Ideal for 35 - 60 HP Tractors

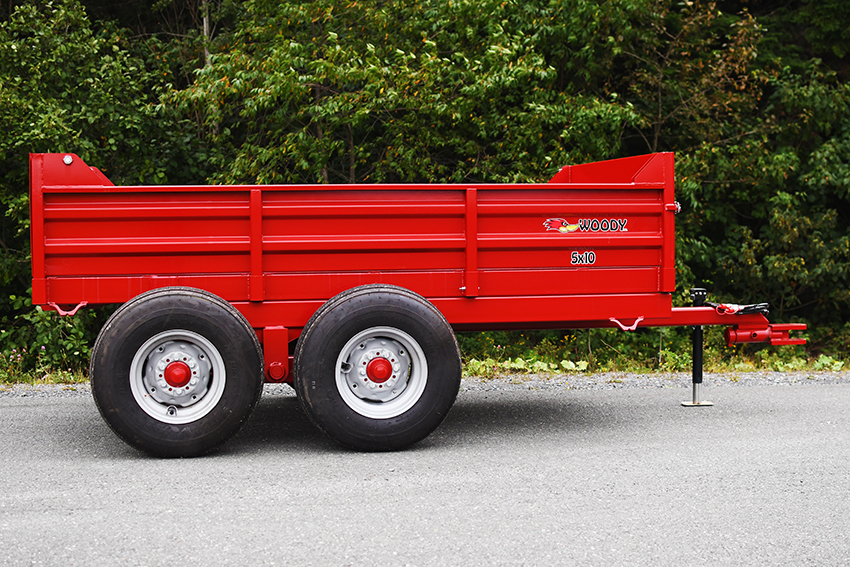

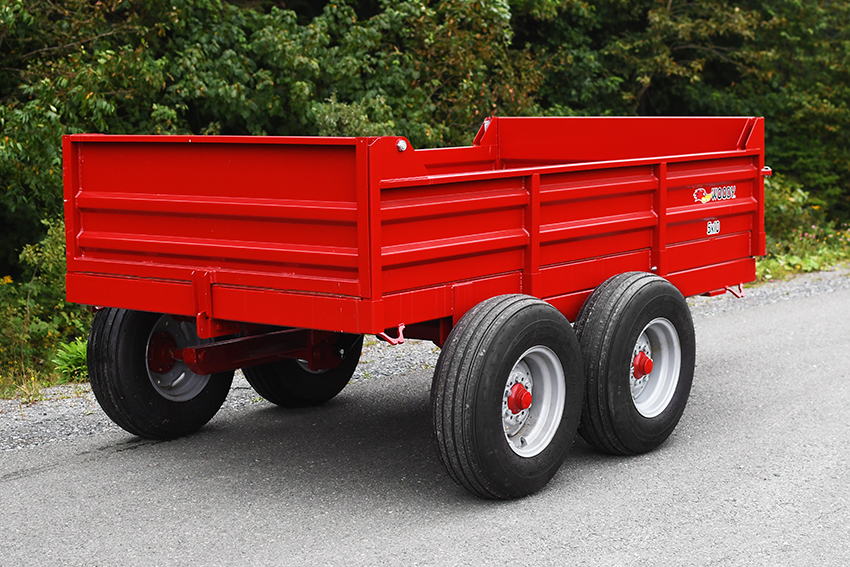

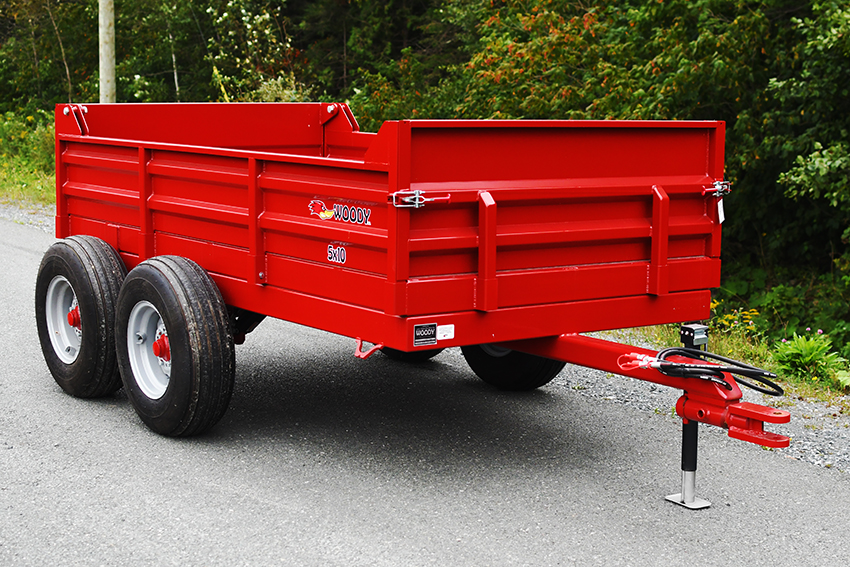

510 Standard Series Dump trailer

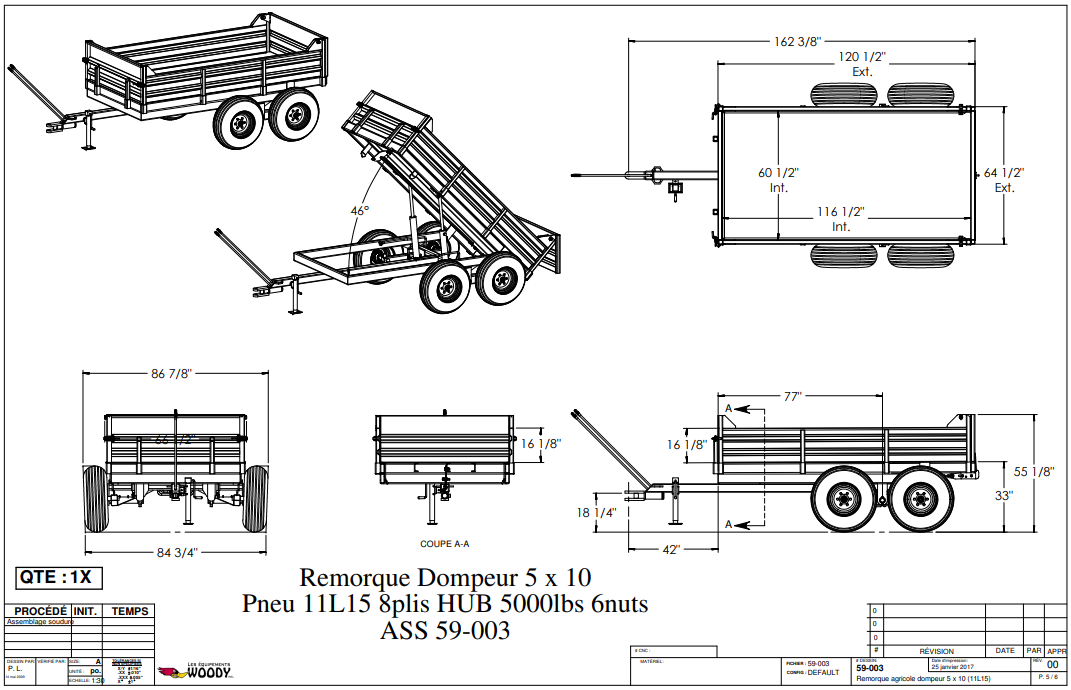

Assembly part no.: 59-003
DUMP TRAILER | |
DIMENSIONS | |
Trailer | 60" x 116" |
Side pannel | 16" |
Floor height | 32" |
Lateral wall height | 48" |
Front and back pannel (removable) | 22" |
TECHNICAL SPECIFICATION | |
Load | 8 tons |
Axle | 6 bolts |
Axle capacity | 5000 lbs |
Cylinder | 2 x 30-20 double actions |
manual trailer hitch | 6000 lbs |
VOLUME | |
Without (extra side pannel ) | 64 cubic feets |
with (extra side pannel) | 88 cubic feets |
INFORMATIONS | |
Back pannel openning | automatic |
Grain doors | optionnel |
Axle | Tandem |
clevis coupling | standard |

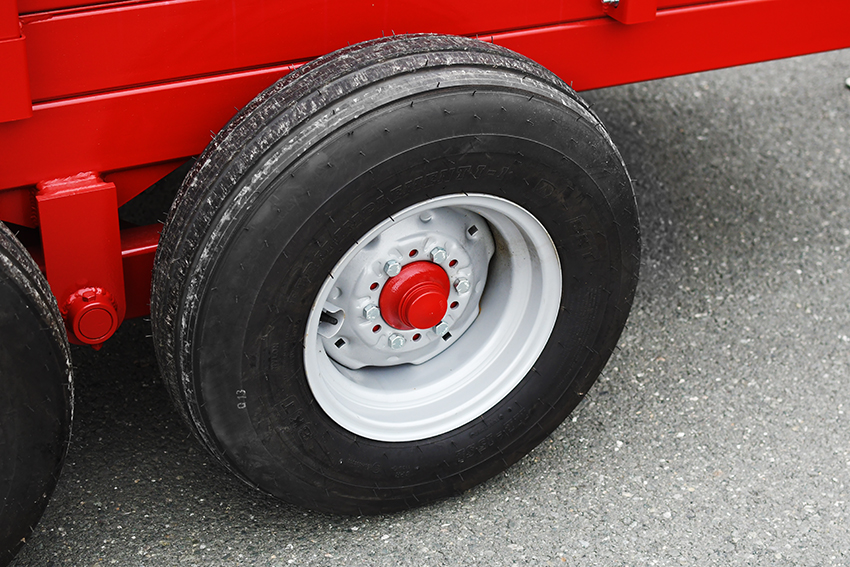

Standard Tires | 11L15, 8 plis |
WEIGHT | |
Approx Weight | 2560 lbs |
