Home Products Forestry Equipment Comparator Log Loader 60-024 | 90 HD

60-024 | 90 HD

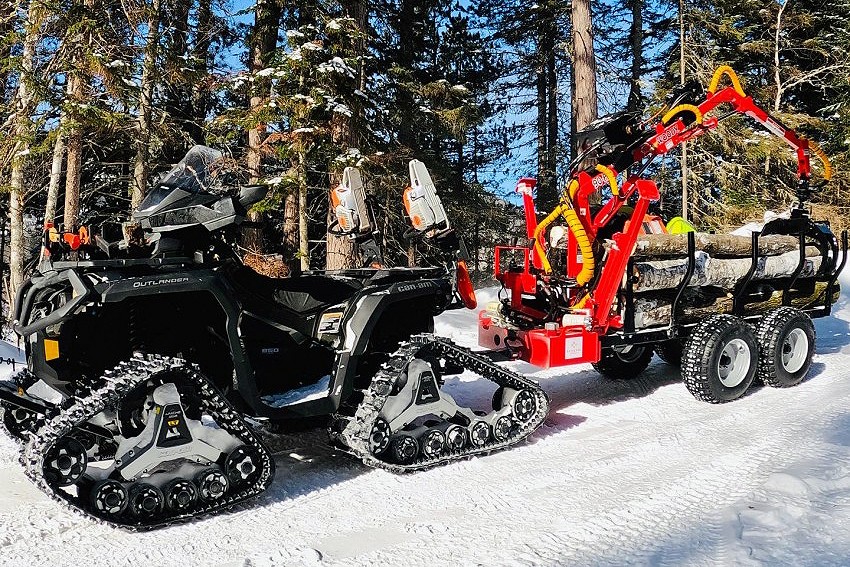

The 90-HD is designed for ATVs of 400 cc and more, and for small tractors. Its 63” low profile is ideal for work in the sugar bush; you are able to go under your tubes in several locations without dismantling. It has a 9’ range and has a 600 lb lifting capacity at maximum range. The 90-HD has its own hydraulic unit, therefore, you do not need an auxiliary oil output.

It is mounted on a 8-52 trailer, (8’ load x 52” wide). It includes an adjustable hydraulic axle that allows you to balance your load at all times, which makes this an essential tool for an ATV.

LOG LOADER
RELATED TRAILER Comptible with the trailer   8-52   (SKU# 59-187)
REACH 9'
LIFT CAPACITY
Maximum Range 600 lbs
Mid Range 1200 lbs
WEIGHT (WITHOUT TRAILER) 650 lbs
INFORMATIONS
Grapple 28''  with 360° rotation (57-022)
Maximum rotor capacity 1000 KG
OPTIONS #SKU
4000 lb winch On Boom (58-008) / On Trailer (58-052)
5.5HP Power unit Standard (53-001) / On ATV (53-013)
12'' Bucket 56-005
7' Gravel bin 59-166
Skis 59-000-14
